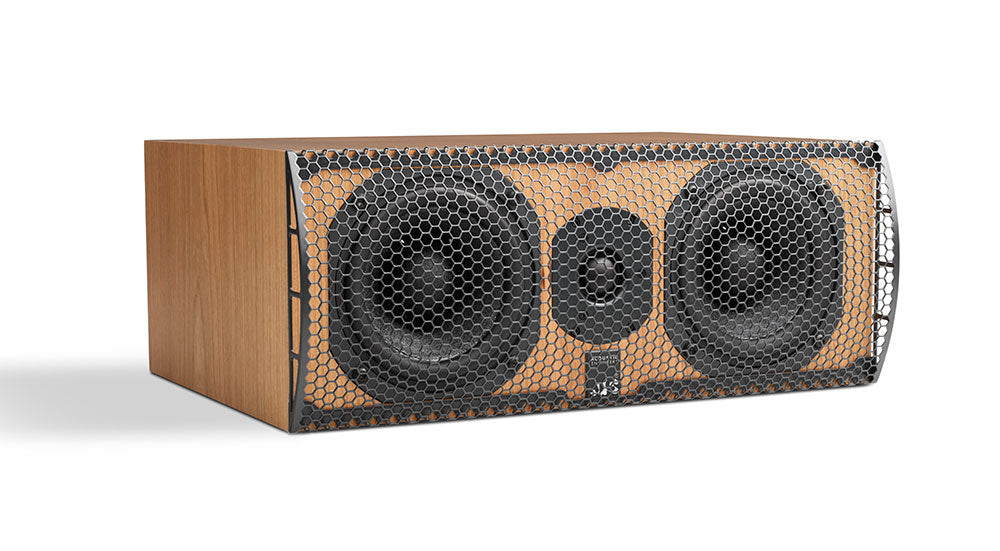

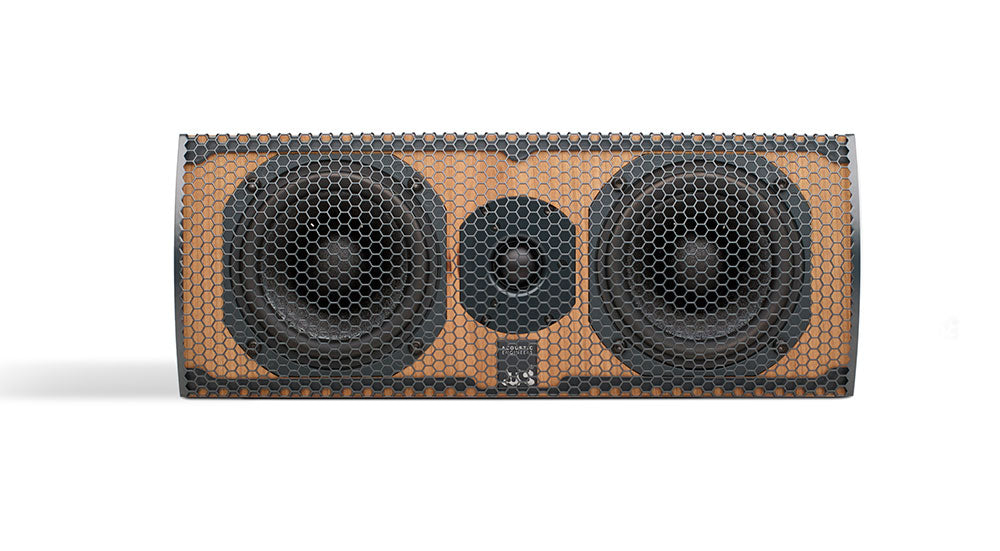

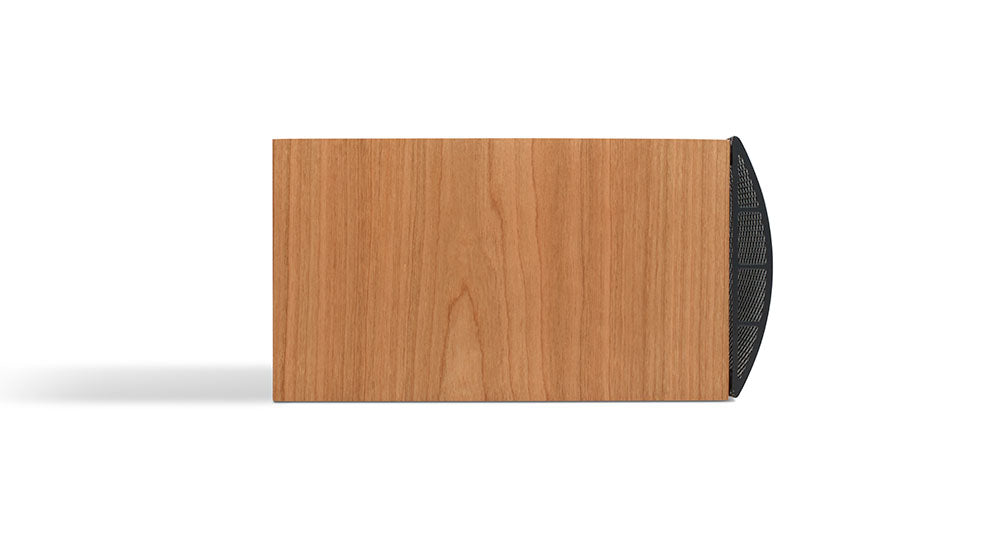

ATC C1 Keskikaiutin

Sale price950,00 €
Väri: Satiini musta

C1C

  • Compatible ATC products for surround sound system: SCM 7, SCM 11.
  • New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
  • Twin 125mm ATC mid/bass unit with integral soft dome.
  • Massive FEA optimised motor assemblies.
  • In-house, hand wound precision flat wire coils.
  • Flat impedance curve allowing easy load for amplifiers.
  • 6 year warranty.

Recommended Configuration

Front Channels / Rear Surround SCM7
Centre Channel CIC
Sub Bass C1 Sub
Upgrade Path SCM11 (Front/Rear left/right) C4 Sub

Drivers: HF ATC 25mm Neodymium, Mid/LF 125mm
Matched Response: +/- 0.5dB
Frequency Response (-6dB): 57Hz–22kHz
Sensitivity: 86dB @ 1W @ 1metre
Max SPL: 103dB
Nominal Impedance: 8 Ohm
Recommended Power Amplifier: 75 to 300 Watts
Crossover Frequency: 2.5kHz
Cabinet Dimensions (HxWxD): 161x410x280mm (grill adds 28mm depth)
Weight: 12kg
