ATC SCM19


Overview

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
• “SL” spec bass driver with 75mm integral soft dome.
• 9kg optimised short-coil/long gap motor assembly.
• In-house, hand-wound precision flat wire coil.
• Flat impedance curve allowing easy load for amplifiers.

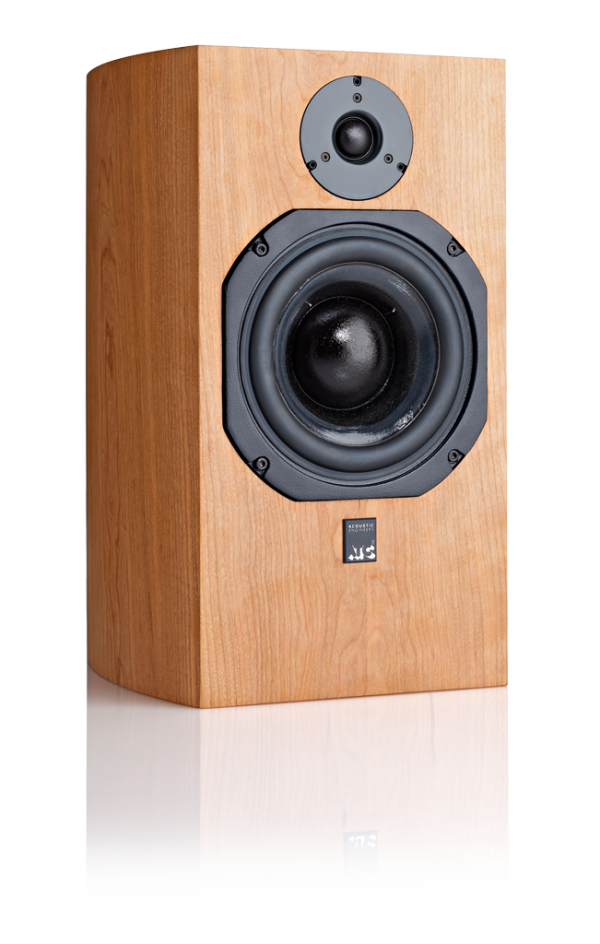

• Veneered Finish Options – Cherry, Black Ash.

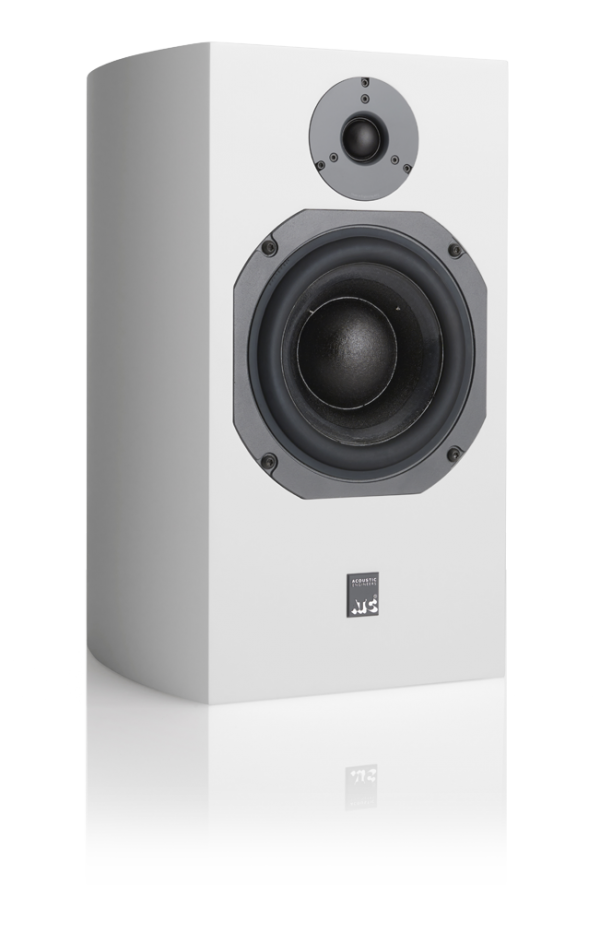

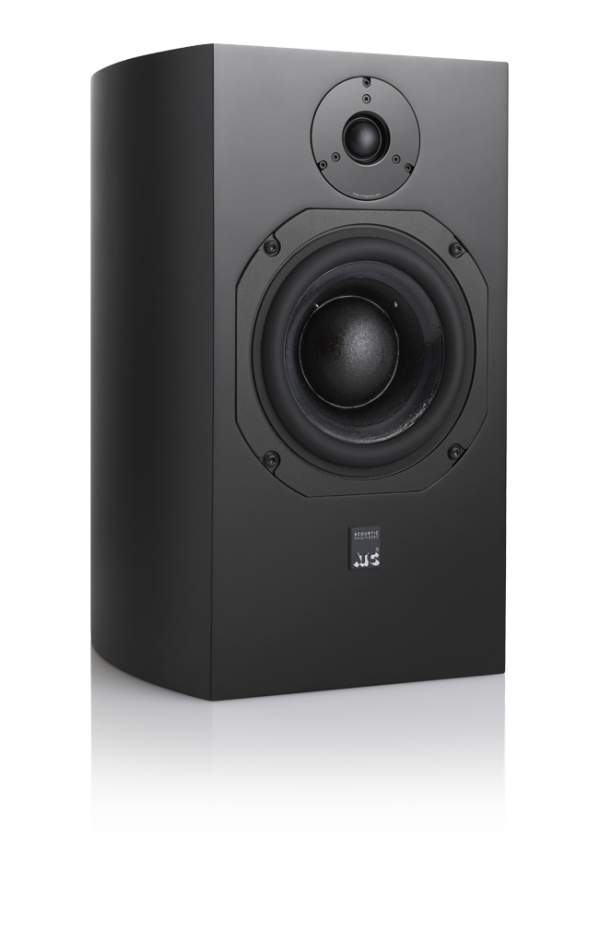

• Painted Finish Options – Satin Black, Satin White.
• 6 year warranty.

“Superlative clarity; excellent phase coherence; sublime bass.”  Hi-Fi Choice Magazine, September 2014

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL
Matched Response: ±0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 438 x 265 x 300mm / 17.24 x 10.43 x 11.81″ (grill adds 34mm to depth)
Weight: 17.8kg

Testejä:

Stereophile SCM19 Review, June 2014

SCM19 Review, Hi-Fi Choice

The Absolute Sound SCM19 Review, August 2014

Stereophile’s Editor’s Choice Products of 2014 – ” Low distortion, zero fatigue, great looks, fair price. WNTL?”

Too Loud, Croatia.  March 2015

2015 Stereophile Recommended Component – Loudspeakers

SCM19 Review, Hi-Fi Pig, 2015

SCM19 Review, Stereotimes, 2015

SCM19 Review, SoundStage Experience Sept 2016
