ATC SCM20ASL Tower Active Lattiakaiuttimet

Sale price10 400,00 €

Väri: Pähkinä
Viimeistely: Matta

SCM20ASLT

Overview

  • Also available in passive version (SCM20PSLT)
  • Full SL Spec Bass driver with 75mm integral soft dome
  • 9kg optimised motor assembly
  • In-house, hand wound precision flat wire coil
  • Wide, even dispersion for pin-point imaging
  • 250watt Class AB bi-amp pack (active version)
  • Active filters and overload protection (active version)
  • 6 year warranty

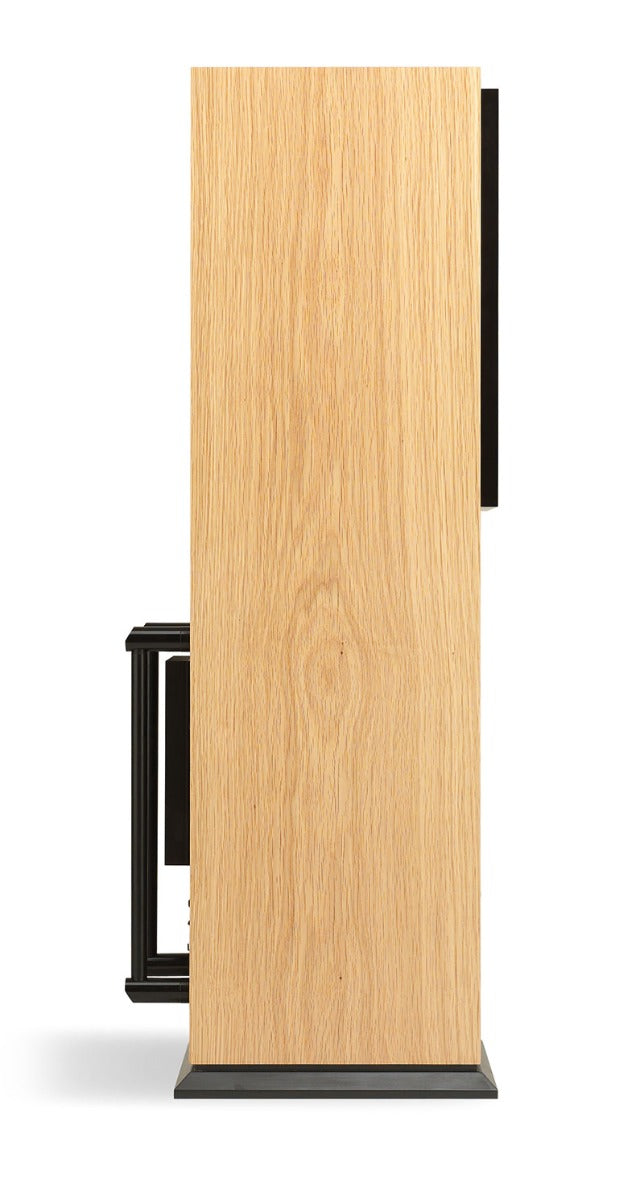

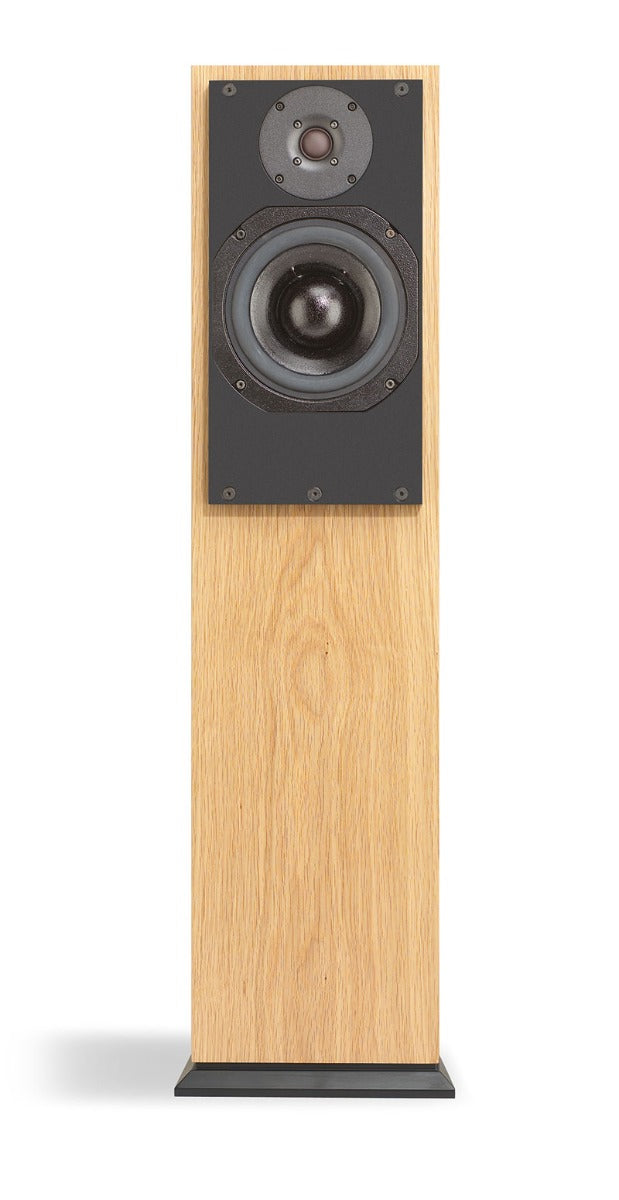

  • Any veneer to order. Featured veneer: Oak.

Available Finishes

Active

Drivers: HF 25mm Neodymium, Mid/LF 150mm
Frequency Response (±2dB): 80Hz–17kHz
Frequency Response (±6dB): 60Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 108dB
Crossover Frequency: 2.8kHz
Connectors: Male XLR
Filters: Active & Passive – 2nd Order Linkwitz-Riley
Amplifier Output: 200w LF, 50w HF
Cabinet Dimensions (HxWxD): 1023x239x365mm
Weight: 40kg
