ATC SCM25ASL Pro Aktiivi Monitorikaiuttimet

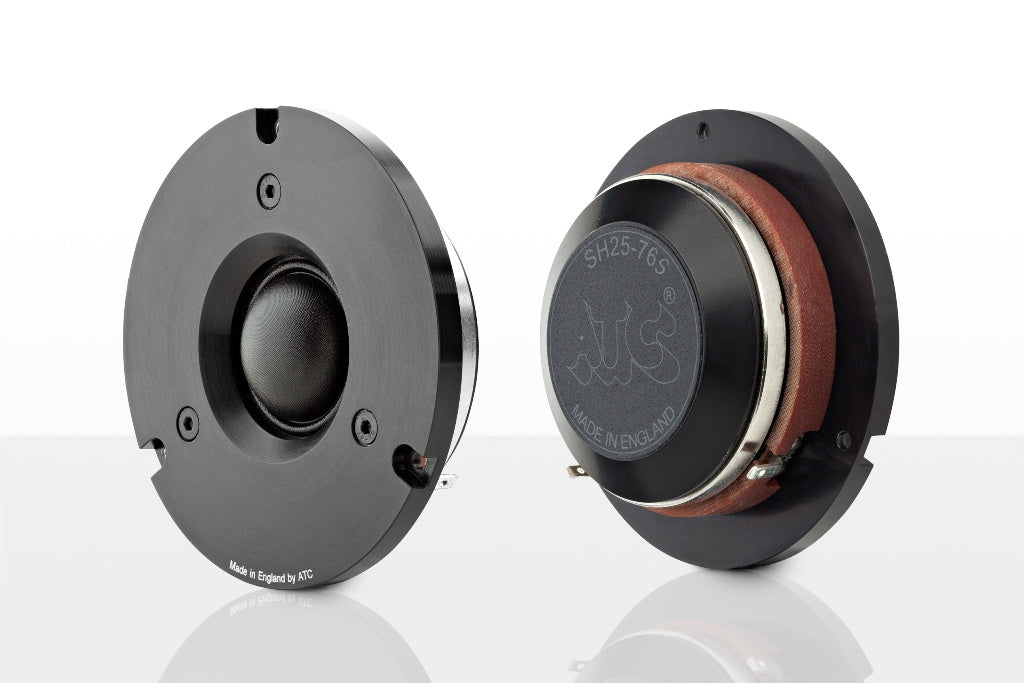

- 25mm neodymium soft dome tweeter.
- ATC hand built 3˝/75mm soft dome mid driver.
- ATC hand built 6.5˝/164mm carbon-paper cone bass driver.
- On-board grounded source 235W class A/B 3-way amplifier.
- Compact size with high output and low cut-off frequency.
- 19˝ rack mountable.
- 6 year warranty.
Drivers: HF 25mm soft dome, Mid 75mm soft dome, LF 6.5″/164mm short-coil carbon paper cone
Amplitude Linearity (±2dB): 74Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 47Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max. Continuous SPL (1 metre): 109dB
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V rms (ref. full output)
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output Power: Bass 150W rms, Mid 60W rms, High 25W rms
Crossover Frequencies: 380Hz & 3.5Khz
Crossover Filters: 4th order critically damped with phase compensations
Low Frequency Boost: 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
Overload Protection: Active FET momentary gain reduction
Dimensions (HxWxD): 264 x 430 x 369mm (10.4˝ x 16.9˝ x 14.5˝). Handles add an 39mm/1.5″ to depth.
Weight: 30kg / 66lbs (per cabinet)
