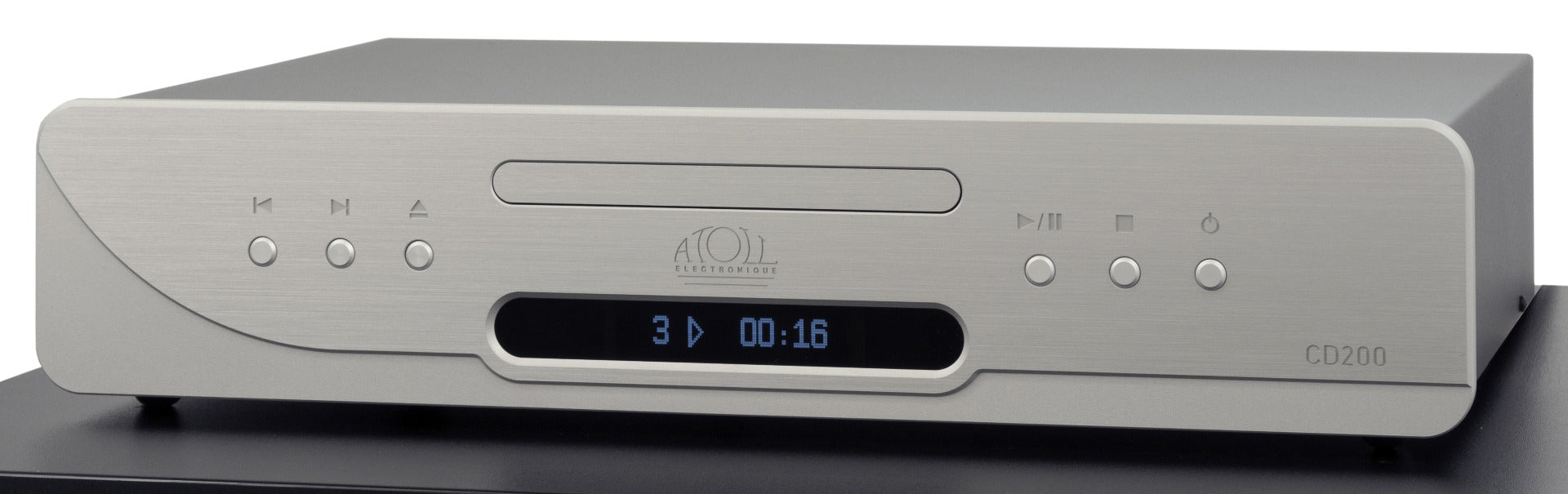

Atoll CD200 Signature CD Player

• Pure audio mechanism from TEAC designed with specific anti-vibration material
• 7 regulated supplies with one specific for the converter
  – BURR-BROWN PCM1792 converter – 24bits/192 kHz, 8x oversampling
  – 129 dB dynamic, 129 dB signal/noise
• Differential current outputs
• Current/voltage converters with bipolar transistors.
• Output differential stages with discrete components polarized on A class.
• CD text
• Linear supplies with a low noise toroïdal transformer dedicated to audio stages
• Linear supplies with a specific high quality 30VA transformer dedicated to digital stages

• Low consumption OLED display
• 1 Coaxial and 1 Optical output

• Accepted disc : CD, CD-R, CD-RW. Formats : MP3-WMA-AAC

Available in blak or silver

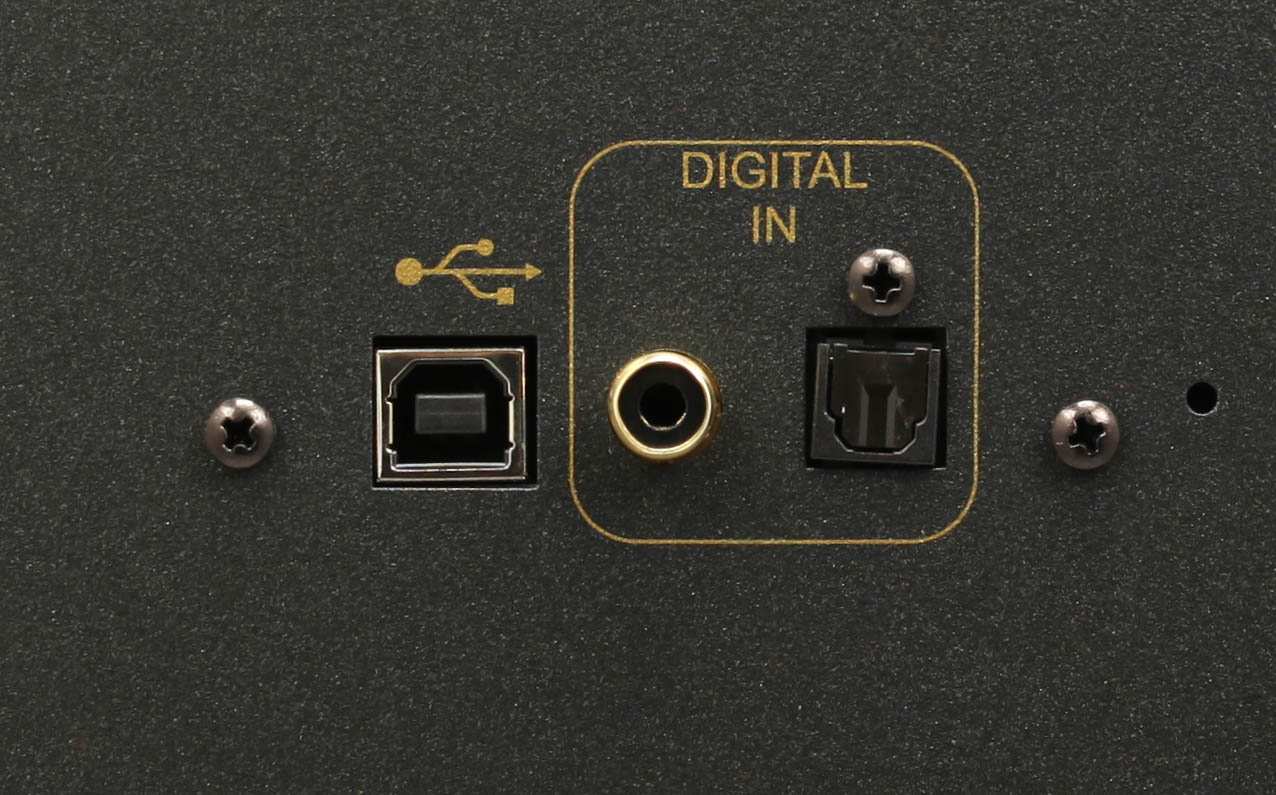

The CD200 Signature can be equipped with an optional board including 3 digital inputs:
– 1 digital input Coaxial (24 bits/192kHz)
– 1 digital input Optical (24 bits/192kHz)
– 1 USB input:PCM from 16 bits to 24bits up to 192 kHz (asynchronous).
USB : XMOS with specific program designed for ATOLL.

The selection of the digital inputs is directly accessible from the remote control or the keys of the front panel.

Connectings:

• Stereo Line out (L&R)
• Digital optical
• Digital coaxial

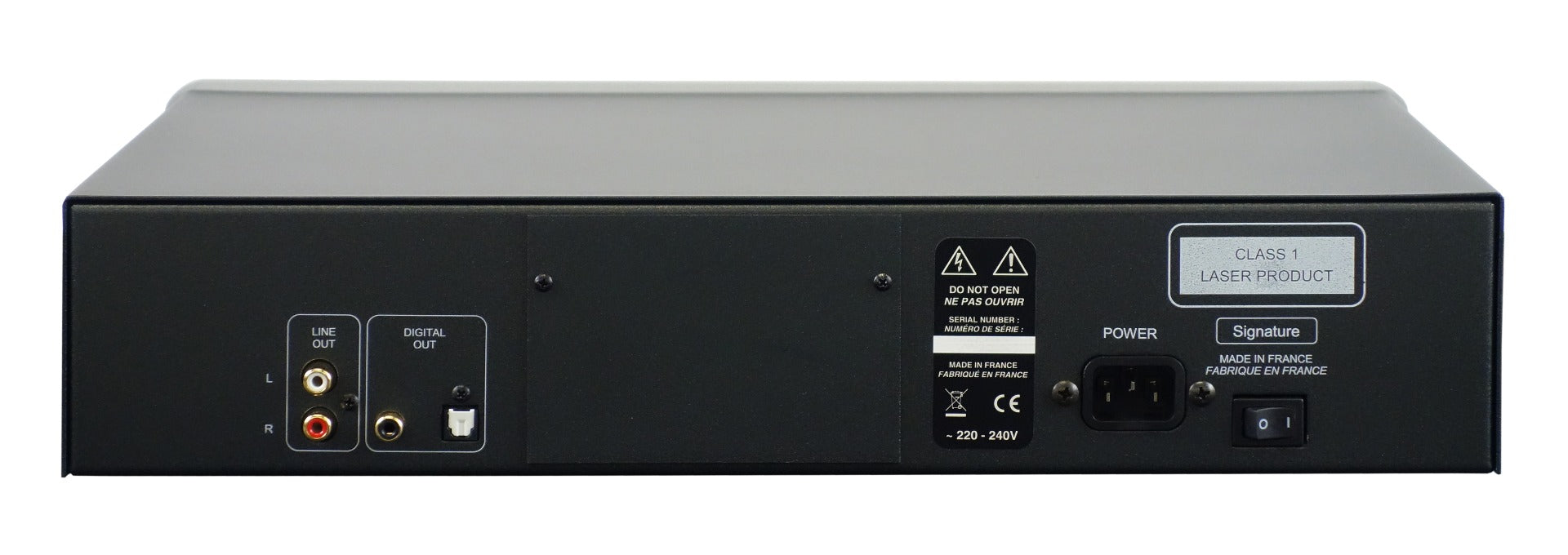

Rear view of CD player

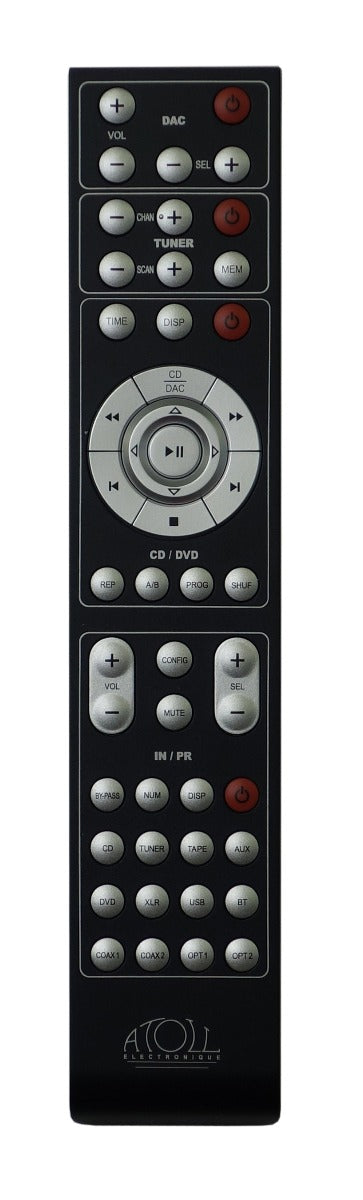

All CD players are equipped with a serial remote that allows to control other ATOLL’s devices (Integrated, preamp, Tuner, DAC).

It also allows several basic functions of the CD player such as program, repeat, random, etc.
