Atoll DAC200 Signature

Audio Specs:

– SABRE converter ES9028PRO (32 bits/768kHz)
(133dB dynamic range; THD+n -120dB)
– Ultra low jitter clock oscillator
– Symmetrical voltage outputs
– SABRE ES9311EQ Ultra-Low Noise supply (<1μVrms output noise)
– Symmetrical power transformers for output stages (linear transformers)
– Output stages with discrete components and no-feedback
– High technology MKP capacitors

Readable files:

The SPDIF inputs may playback up to PCM 192kHz.

USB-B input plays up to PCM 768kHz & DSD64, 128, 256 and 512.

(These performances may vary depending on the software or OS of the USB source).

Interface:

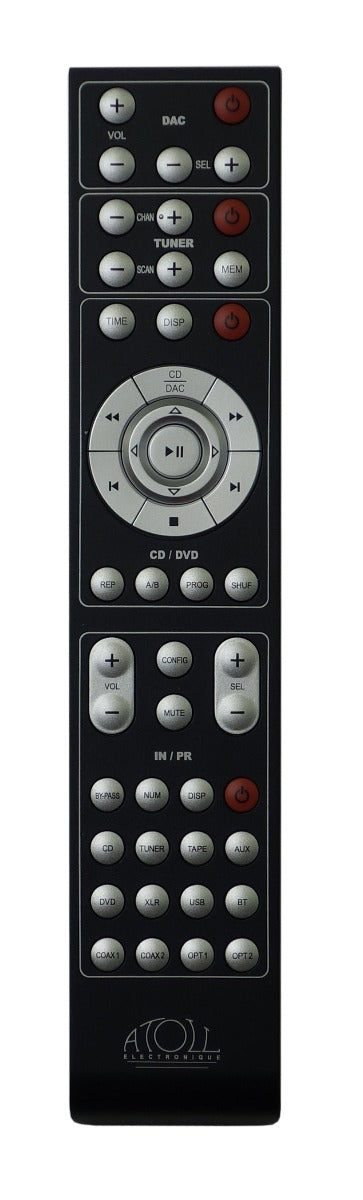

– Serial remote control

– Volume control (By-pass On or Off)
– Management of the DAC filters.

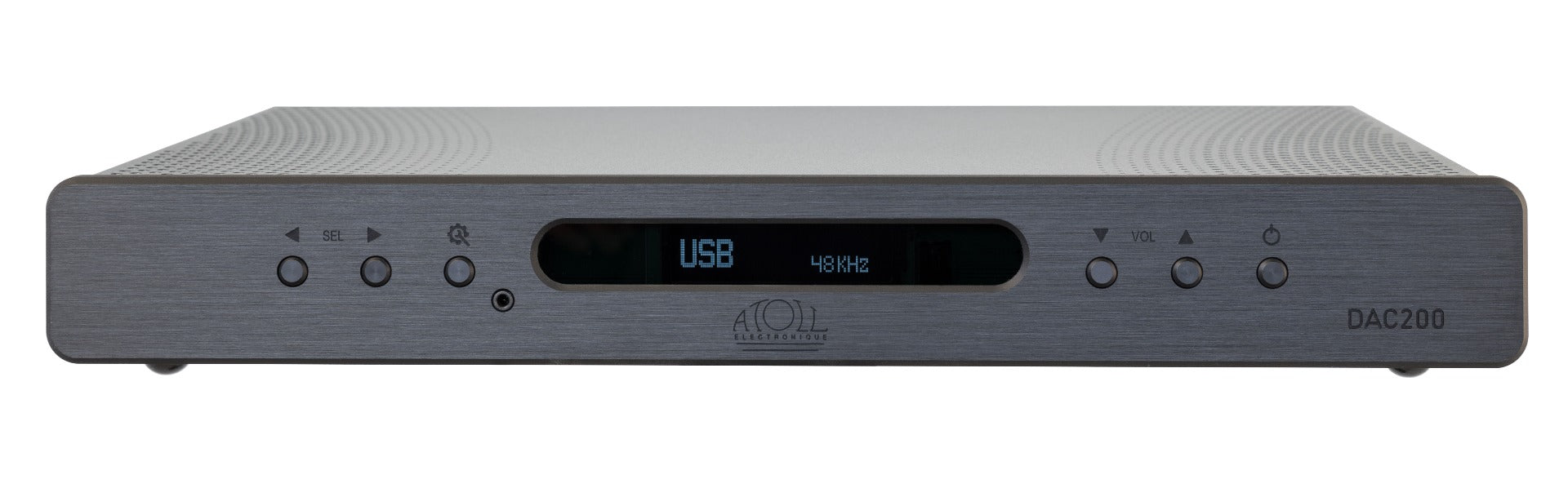

– Low consumption OLED display which can display the selected source and also the frequency sample rate of this one.

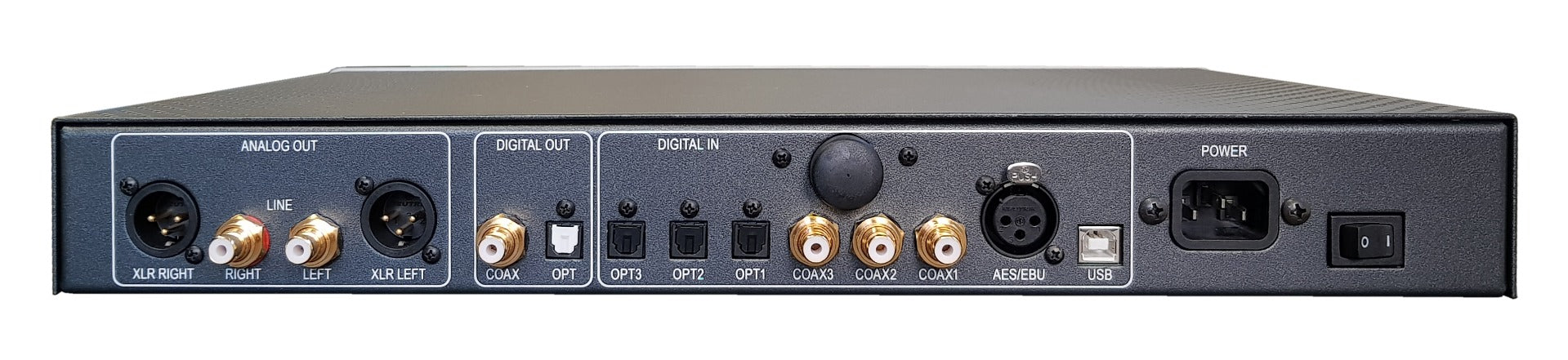

Connecting:

9 digital inputs:

– 3 Coaxial
– 3 Optical
– Bluetooth
– AES/EBU
– USB-B

2 digital outputs:

– Coaxial
– Optical

3 analog outputs:

– RCA unbalanced stereo
– XLR balanced stereo
– Headphones jack 3,5mm

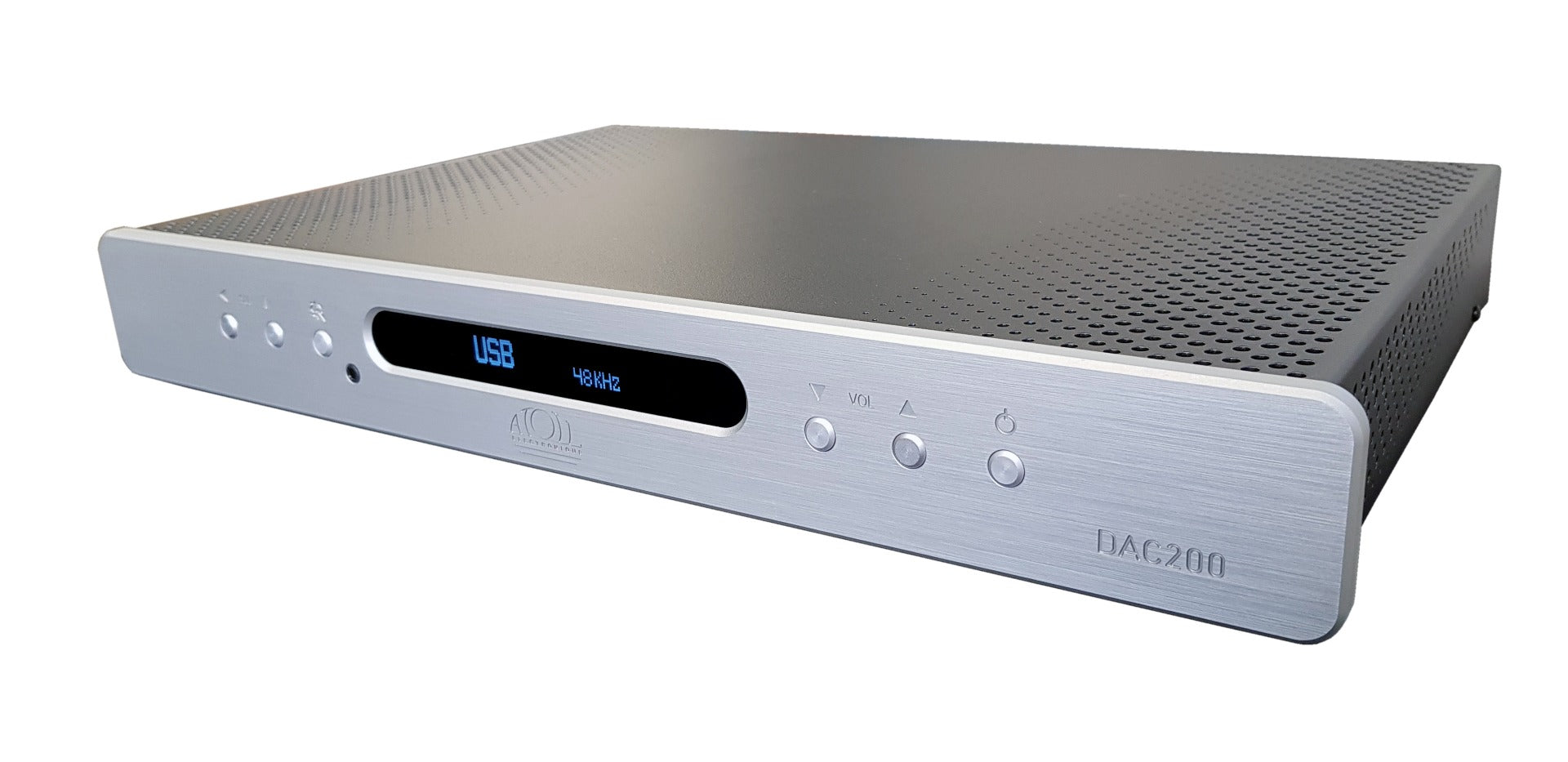

Available in black or silver

Size: 440x280x60 mm
Weight: about 4kg
