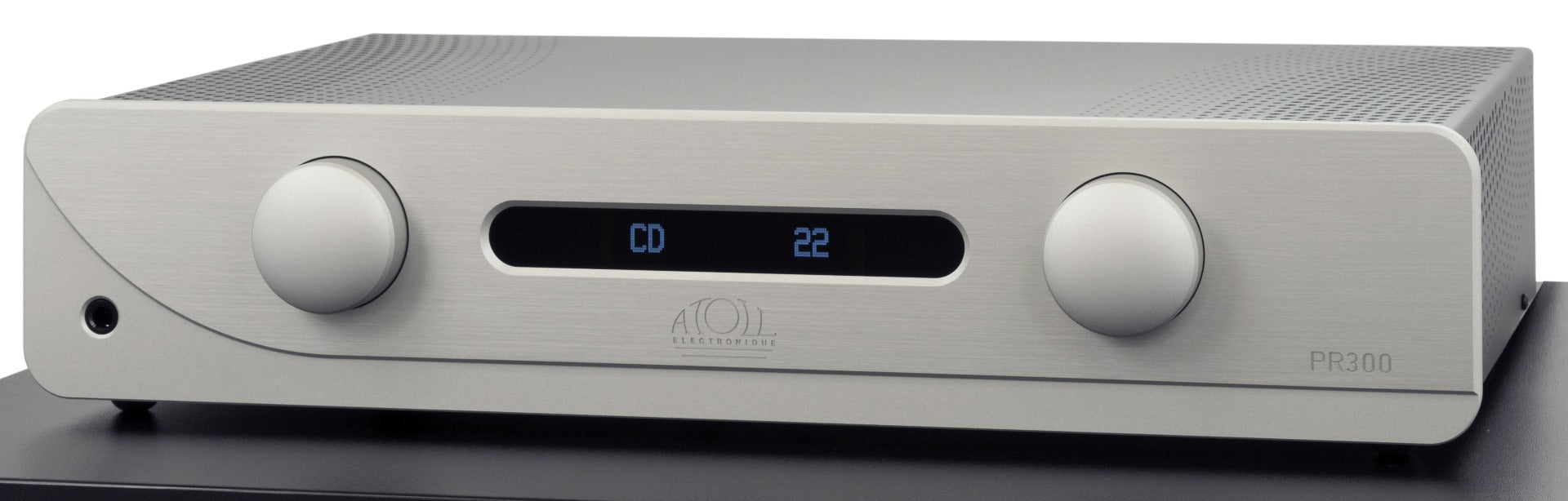

Aluminium front panel of 8 mm and complete steel chassis of 1,5 mm
Fully symmetrical stages with discrete components
Toroïdal transformer, double-mono configuration
Complete adjustment (via front panel or remote control) of the volume & balance settings
Direct Inputs access

Low consumption OLED display

Complete setup of volume & balance from the remote or the front panel

double attenuator volume control : 1 per channel.

Connectings:

5 audio stereo Inputs (RCA) :

• CD ;
• TUNER ;
• TAPE (IN+OUT) ;
• AUX (or optionnal board);
• DVD.

1 By-pass Input (for home-cinéma configuration)
Double pair of preamp. outputs (for bi-amplification).
Trigger 12V Output

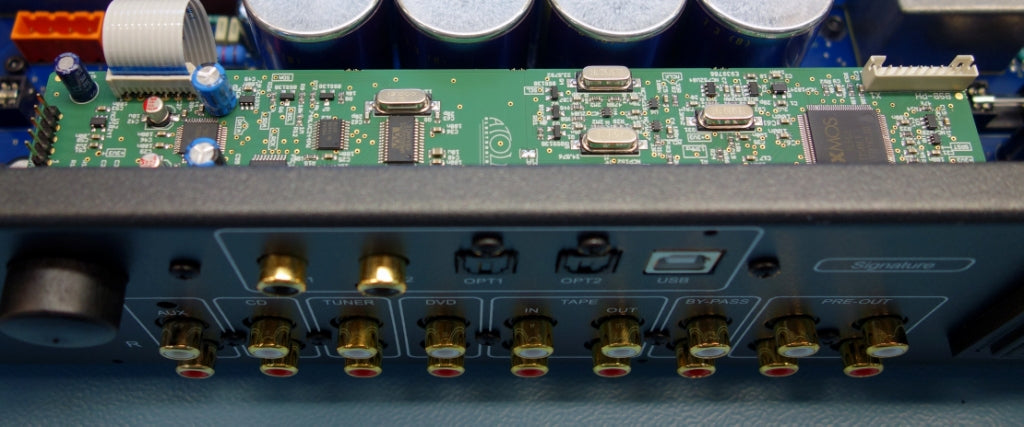

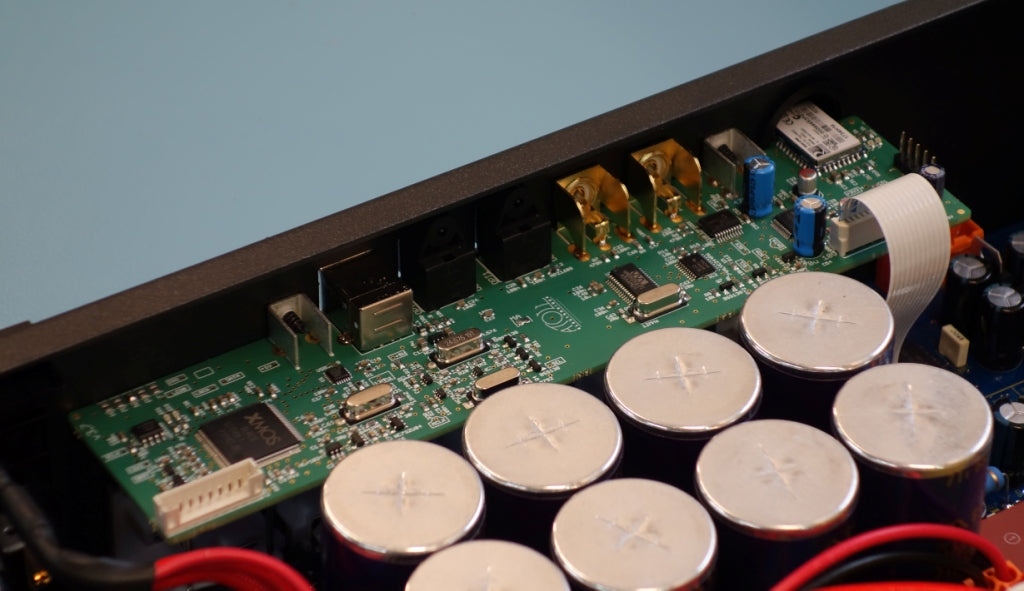

OPTIONAL DIGITAL BOARD:

An optional board with several Digital Inputs is available, including:

• 1 Bluetooth receiver: Direct digital to the AKM audio converter
• 2 Coaxial Inputs (24Bits/192kHz)
• 2 Optical Inputs (24Bits/192kHz)
• 1 USB-B Input: PCM & DSD
  Audio converter : AKM – AK4490
  PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous).
  DSD : DSD64 & DSD128.
  USB Interface: XMOS with specific program designed for ATOLL.

Available in black or silver

Technical specs:
Supply: 340 VA
Total of capacitors: 62 000 µF
Number of Inputs: 5
Input Impedance: 220 kohms
Sensitivity: 500 mV
Rate Signal/Noise: 100 dB
Distorsion at 1kHz: 0,005%
Frequency Response: 5Hz-200kHz
Rise Time: 1,5µs
Dimensions: 440*90*280mm
Weight: 9 Kg

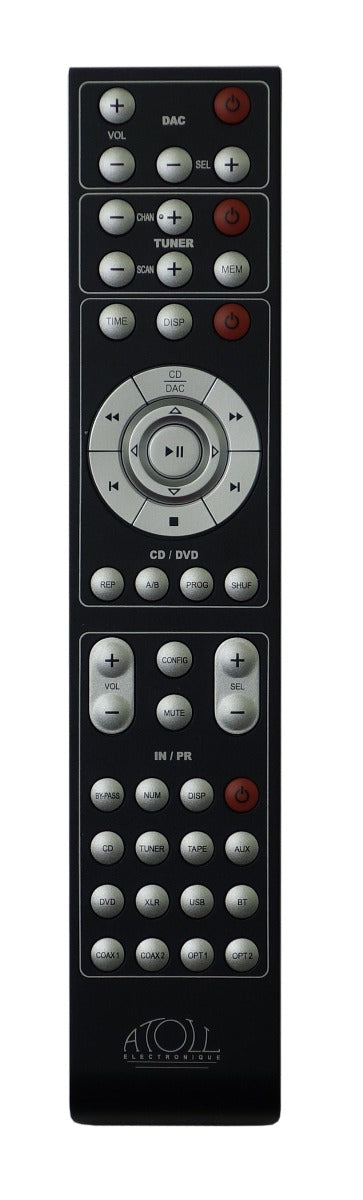

Universal remote control (on serial) for all ATOLL products (Preamp., Integrated, Tuner, CD players, DAC);

Phono Stages

Phono Stages P50 - P100

P50 : The P50 is the entry level phono stage. P100 : the P100, also integrable in all our IN (except IN30) & PR, is based on a complete symetrical scheme with discrete components. The Configuration MM or MC is possible directly on the board. Input Impedance is also adjustable for MC cartridges. Technical Specs: REFERENCE P50 P100 Cartridge MM MM / MC Input Impedance 47 k 47 k or 100k* Input capacitors 100pF 100pF or rien* MM Gain 40 dB 40 dB MC High Gain - 46 dB MC Low Gain - 52 dB THD 0,05 % 0,05 % * depending of setup (see manual)
