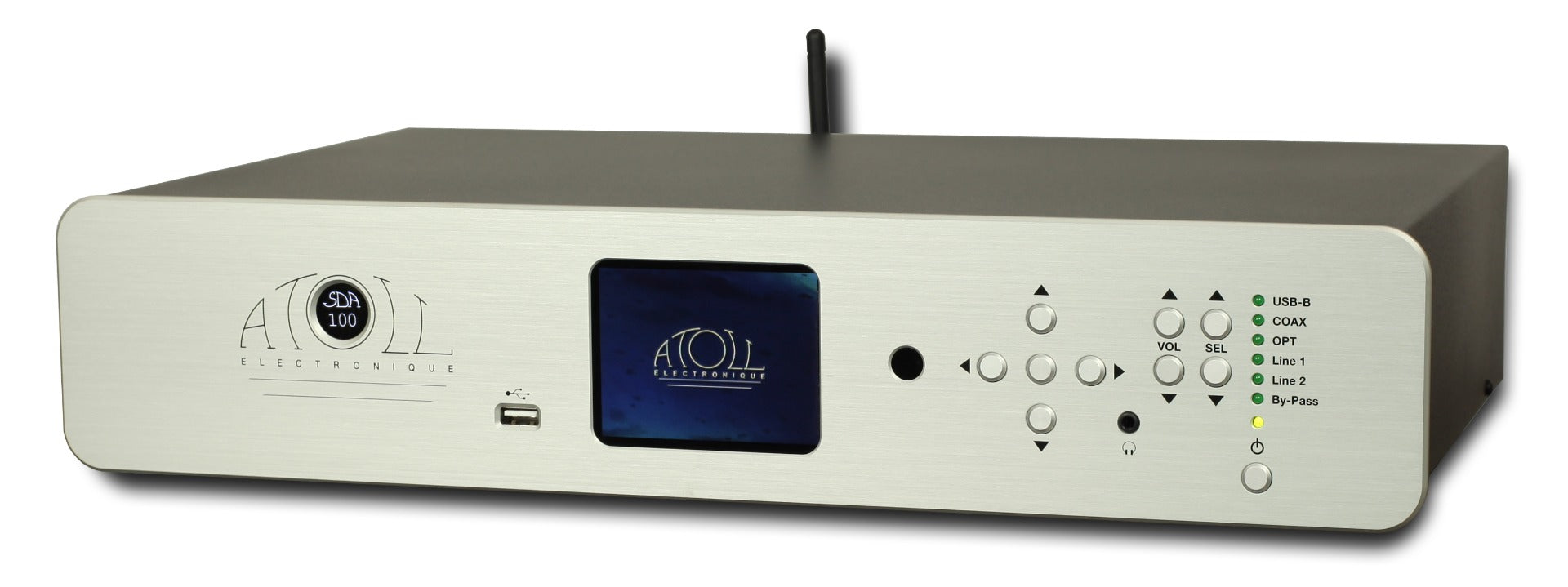

Atoll SDA100 All in One
*Sisältää kaukosäätimen ilman lisähintaa
All in One SDA100
STREAMER
DAC
AMPLIFIER
STREAMER:
All audio files linked to the network can be read: FLAC/WAV up to 24 bits/192kHz, ALAC, AIFF, MP3…
Displays of all information’s (covers, files names, time…) “gapless” system (uninterrupted playback of consecutive audio tracks)
DAC & Pre-amp / connecting:
- 2 USB « A » Inputs (1 front & 1 rear) up to 24 bits/192kHz
- 3 digital Inputs:
- 1 USB « B » (asynchronous 24 bits/192KHz)
- 1 Coaxial SPDIF (24 bits/192KHz)
- 1 Optical SPDIF (24 bits/96KHz)
- 2 Stereo RCA analog Inputs
- 1 RJ45 network link
- 1 Wifi antenna
- 1 Stereo RCA analog Output
- 1 Trigger 12V output
- 1 headphones Output (on front panel)
- 1 pair of terminal Outputs
Internet Radio:
- Internet radios (MP3 or HD) with vTuner system: choice in 15000 stations, 120 countries, 56 genres, podcasts… –
- Radio’s logos displays and all information’s available (titles, artists…)
1 Bluetooth® receiver (I2S interfaced to the PCM5102)
Amplifier
- Specific transformer for power stages
SDA100 | ||
Power (WRMS/8 Ohms) | 2*60W | |
Power (WRMS/4 Ohms) | 2*70W | |
Power supplies | 160VA+30VA |
End users:
- 3,5″ QVGA TFT color display

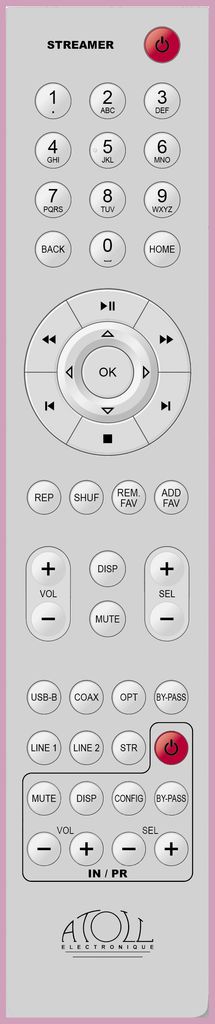

- Remote control (volume control, Inputs selection, web radio setup…)

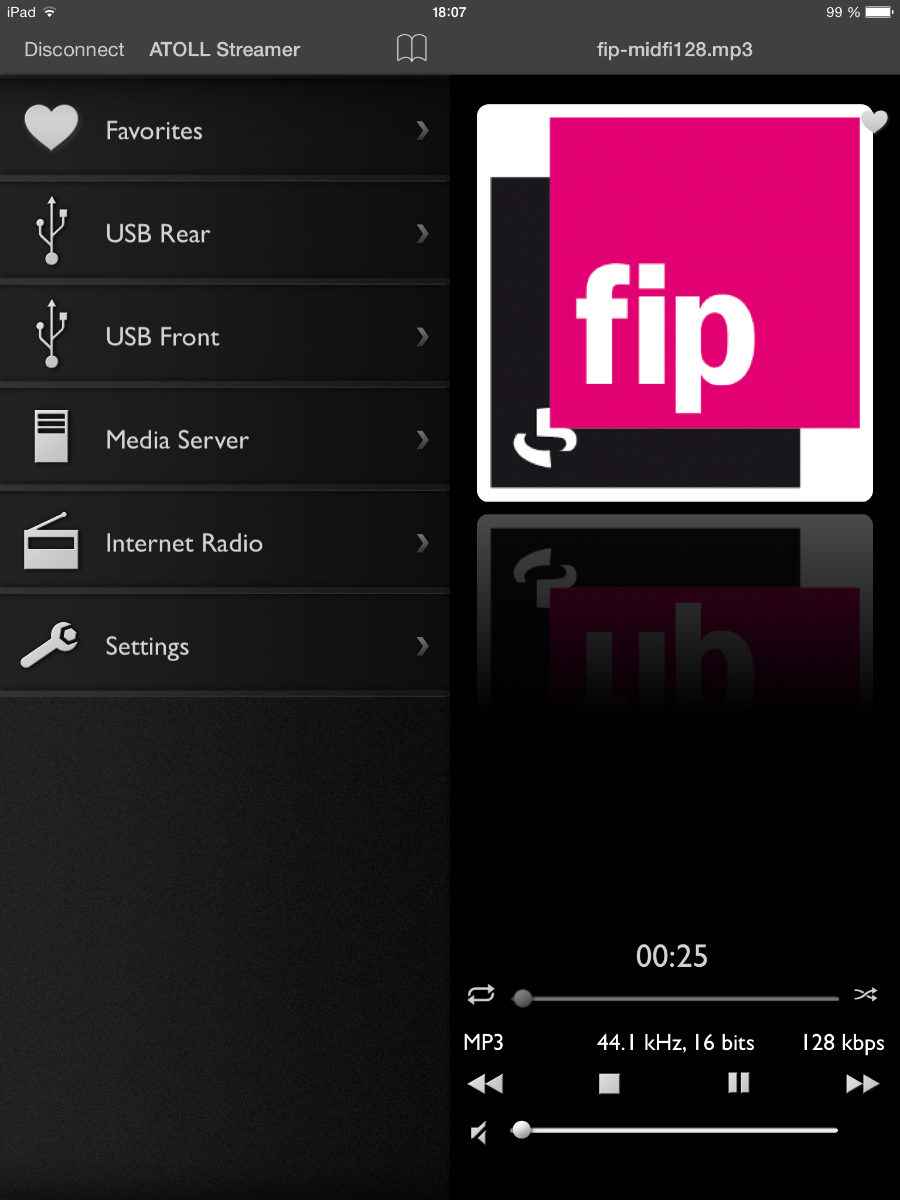

- Control with a free downloadable Apple® or Androïd® app.
The streamer includes DLNA and Upnp protocole that allows direct streaming from some different apps.
- Streaming Qobuz/Tidal with Mconnect (Apple & Android): Streaming with Mconnect
-
Streaming Qobuz/Tidal with BubbleUPnP (Android): Streaming with BubbleUPnP
Audio specs:
- Converter: PCM5102 (SNR: 112dB)
- Symmetrical audio stages with discrete components polarized in AB class
- MOSFET power transistors
- Analog volume control (with commutated resistors) with possible By-Pass
- MKP audiophile capacitors armored in an aluminum enclosure
1,5mm steel chassis
Aluminum front panel (black or silver) of 4mm
Dimensions: 440*290*90 mm
Technical Specs:
SDA100 | ||
Power supplies (VA) | 30 + 160 VA | |
Total of capacitors (µF) | 44 618 µF | |
Power Wrms/channel/8Ω | 2*60 W | |
Puissance Wrms/channel/4Ω | 2*80 W | |
Dynamic | 112 dB | |
Input Impedance | 330 kOhm | |
Distortion at 1kHz | 0,005% | |
Bandwidth | 5Hz – 100kHz | |
Rising Time | 2 µs | |
Sensibility | 450 mV | |
Signal/Noise Ratio: | 100 dBA | |
USB-B Input | Asynchronous 24bits/192kHz | |
DAC Converter | Burr-Brown PCM5102 | |
USB DRIVER: To use the USB-B asynchronous input, you need to download this driver on your computer using Windows software. This is not requisite on iOS or Linux systems.
Products concerned: DAC200 – SDA100 – SDA200 – ST100se – ST200se – HD120 – CD400se – IN300
