Atoll ST100se Streamer

Network Streamer:

• All audio files link to the network can be read.
• Displays of all informations (covers, files names, time…)
• “gapless” system (uninterrupted playback of consecutive audio tracks)
• Readable formats: FLAC/WAV 176.7kHz & 192kHz/24bits, ALAC, AIFF, MP3…
• Possible update via internet

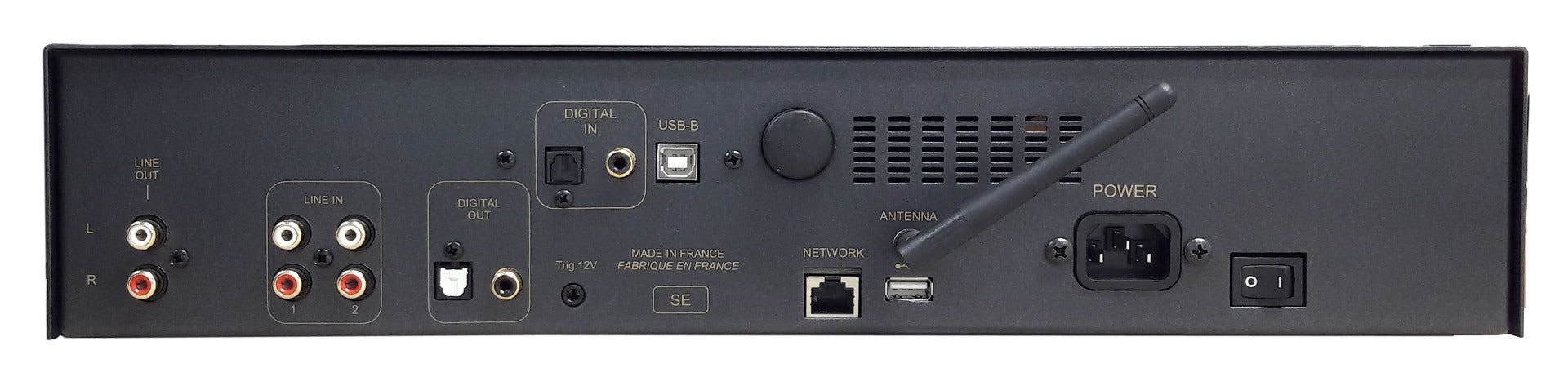

DAC & Pre-amp / connectings:

• 2 USB «A » Inputs (1 front & 1 rear).
• 3 digital Inputs:
  • 1 USB « B » asynchronous (24 bits/192KHz)
  • 1 Coaxial SPDIF (24 bits/192KHz)
  • 1 Optical SPDIF (24 bits/192KHz) (PCM1796 for the ST100)
• 2 analog Inputs
• 1 RJ45 network link
• 1 Wifi antenna

• 1 pair of analog RCA Output
• 1 digital Output (coaxial)
• 1 digital Output (Optical)
• 1 headphones Output (on front panel)

Bluetooth® receiver (I2S interfaced to the PCM5102)

Internet Radio:

• With a WIFI or Extranet (RJ45) connection, direct access to internet radios (MP3 or HD) by the vTuner system:
  choice in 15000 stations, 120 countries, 56 genres, podcasts…
• Radio’s logos displays and all information’s available (titles, artists…)

End users:

• 3,5″ QVGA TFT color display
• All functions available from the front panel and the remote control
• Serial remote control (volume control, Inputs selection, web radio setup…)
• Control with a free downloaded Apple® or Androïd® app.

The streamer includes DLNA and Upnp protocole that allows direct streaming from some different apps.

• Streaming Qobuz/Tidal with Mconnect (Apple & Android): Streaming avec mconnect
• Streaming Qobuz/Tidal with BubbleUPnP (Android): Streaming with BubbleUPnP


Audio specs:

• Symmetrical outputs stages with discrete components polarized in A class
• Analog volume control (with commutated resistors) with possible By-Pass
• Transformer specifically dedicated to audio stages (3,6VA for ST100)
• MKT capacitors for audio links (2,2µF for ST100)

1,5mm steel chassis

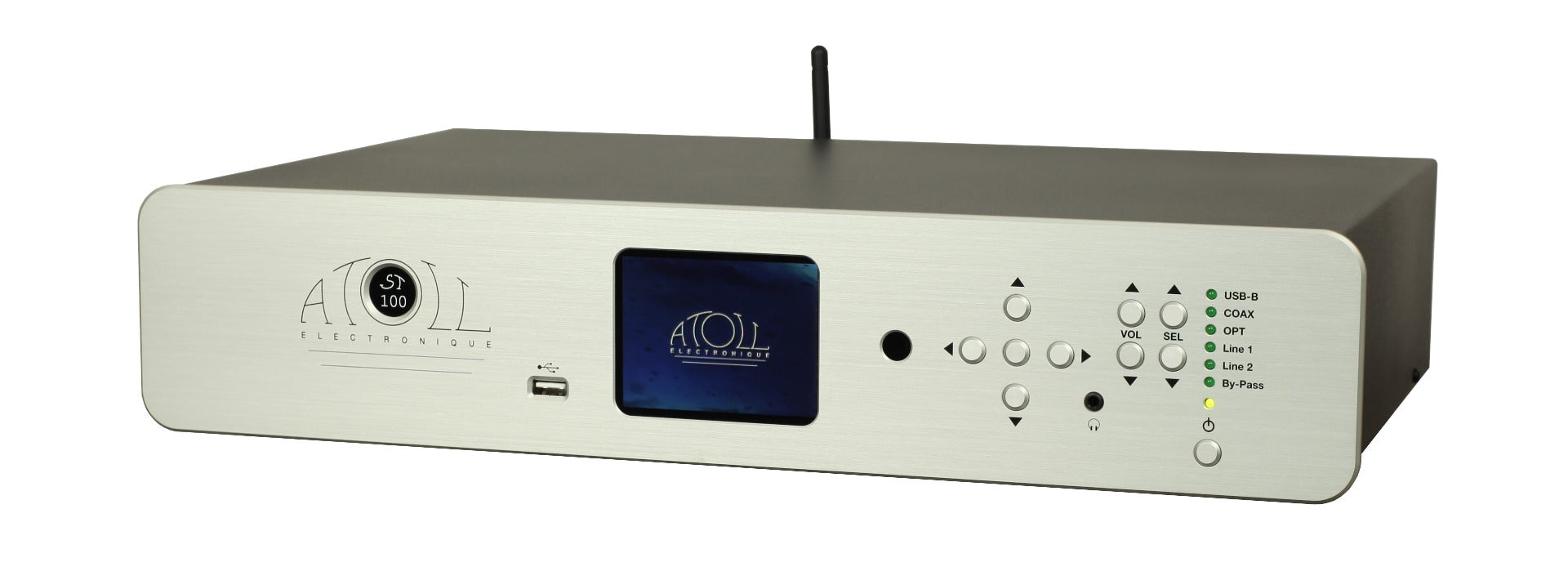

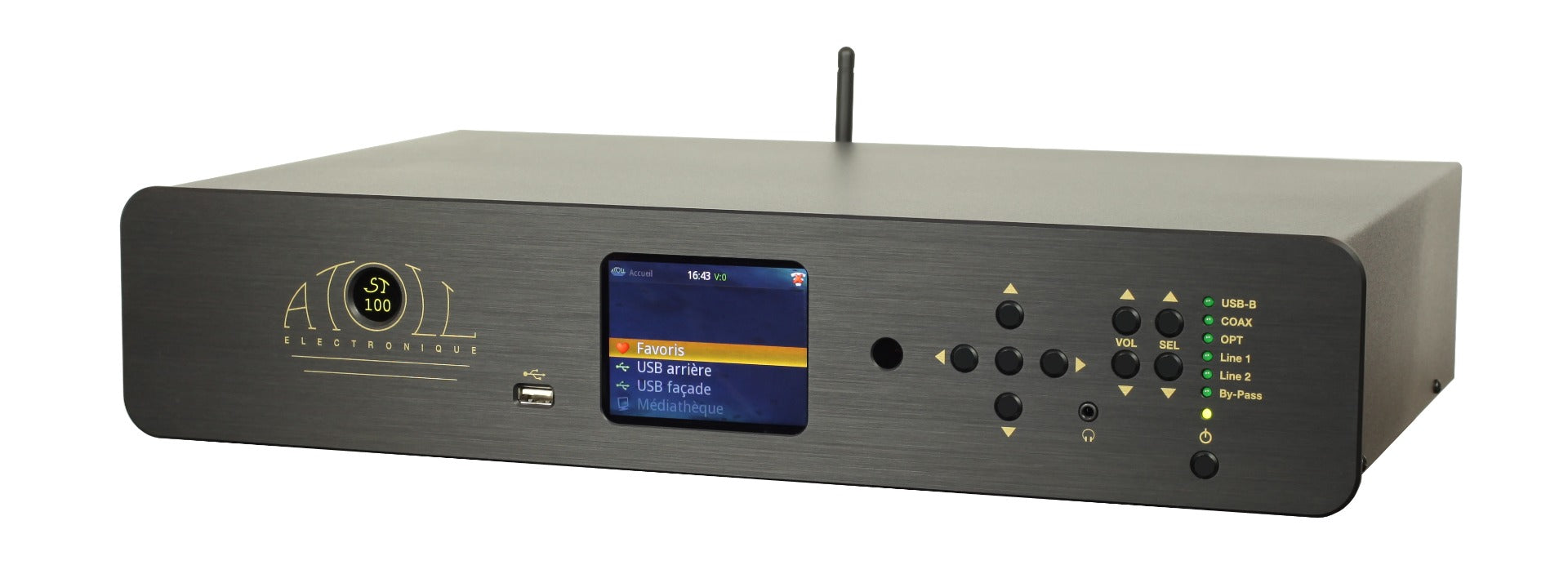

Aluminum front panel (black or silver) of 4mm
Dimensions: 440*290*90 mm
Weight: 5 Kg

Technical Specs:

Power Supply: 30 + 3,2VA
Total of capacitors: 9 858 µF

Output Stages: 2 discrete stages with no feed-back
Dynamic:123 dB
Output Impedance: 100 Ohm
Output Level: 2,4 VRMS
Signal/Noise Ratio: 123 dB
Distortion at 1kHz: 0,005%
Bandwidth: 5Hz – 20kHz
Rising Time: 1,5µs
Digital/analog Converter: Burr-Brown 24 bits/192 kHz

USB DRIVER: To use the USB-B asynchronous input, you need to download this driver on your computer using Windows software. This is not requisite on iOS or Linux systems.

Products concerned: DAC200 – SDA100 – SDA200 – ST100se – ST200se – HD120 – CD400se – IN300

«XMOS-Stereo-USB-Audio-Class2-Driver-30BB_v4.13.0.exe»
