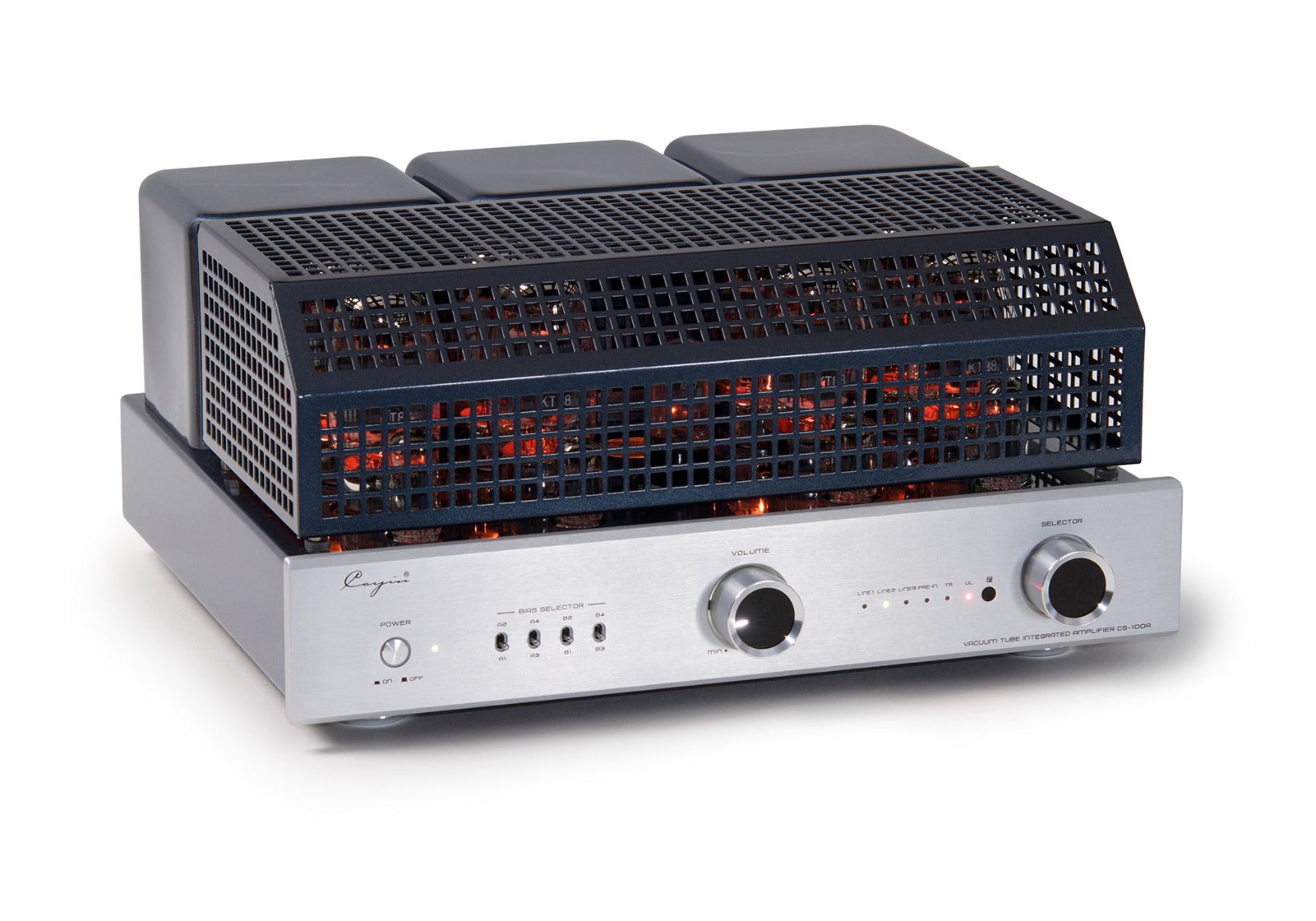

Cayin CS-100A EL34

Sale price4 074,00 €

Väri: Black

The use of EL34 in the output stage makes the valve amplifier Cayin CS-100A cheaper, without significantly reducing the power output compared to the KT88 variant. This gives you one of the most powerful amps of its kind for a particularly affordable price. Apart from the eight EL34 tubes in the output stage, everything remains the same. 6SN7, 12AU7EH and 12BH7EH do the work. High-quality Alps potentiometers, film resistors, ceramic bases and special audio capacitors plus a heavy toroidal transformer and system remote control round off the equipment. At its terminals (taps for 4 and 8 ohms available) the Cayin CS-100A / EL34 delivers an output of 75 watts per channel in class AB ultra-linear mode and 40 watts per channel in triode operation. And if you ever want to upgrade the amplifier to the KT88, the external bias adjustment with level display will help you.

Technical data Cayin CS-100A EL34

Frequency range

8Hz-75kHz (-3dB)

Klirrfactor (THD)

1%(1kHz)

External voltage distance

92dB

Input impedance

100kΩ

Input sensitivity

450 mV line input 1300mV pre-in

Tube assembly

6SN7 x 1, 12BH7EH x 2, 12AU7EH x 2, EL34 x 8

Entrances

Line 1, Line 2, Line 3, Pre-In

circuit

Class A/B

Housing color

Anthrazit Metallic

Front panel

Silver or black

Output power (RMS) at 4 and 8 ohms

40W+40W Triode, 75W +75W Ultralinear

Maximum power consumption

480W

Dimensions (W x D x H)

420mm × 394mm × 200mm

Weight

30kg

Furnishing

Remote control, integrated bias measuring instrument
