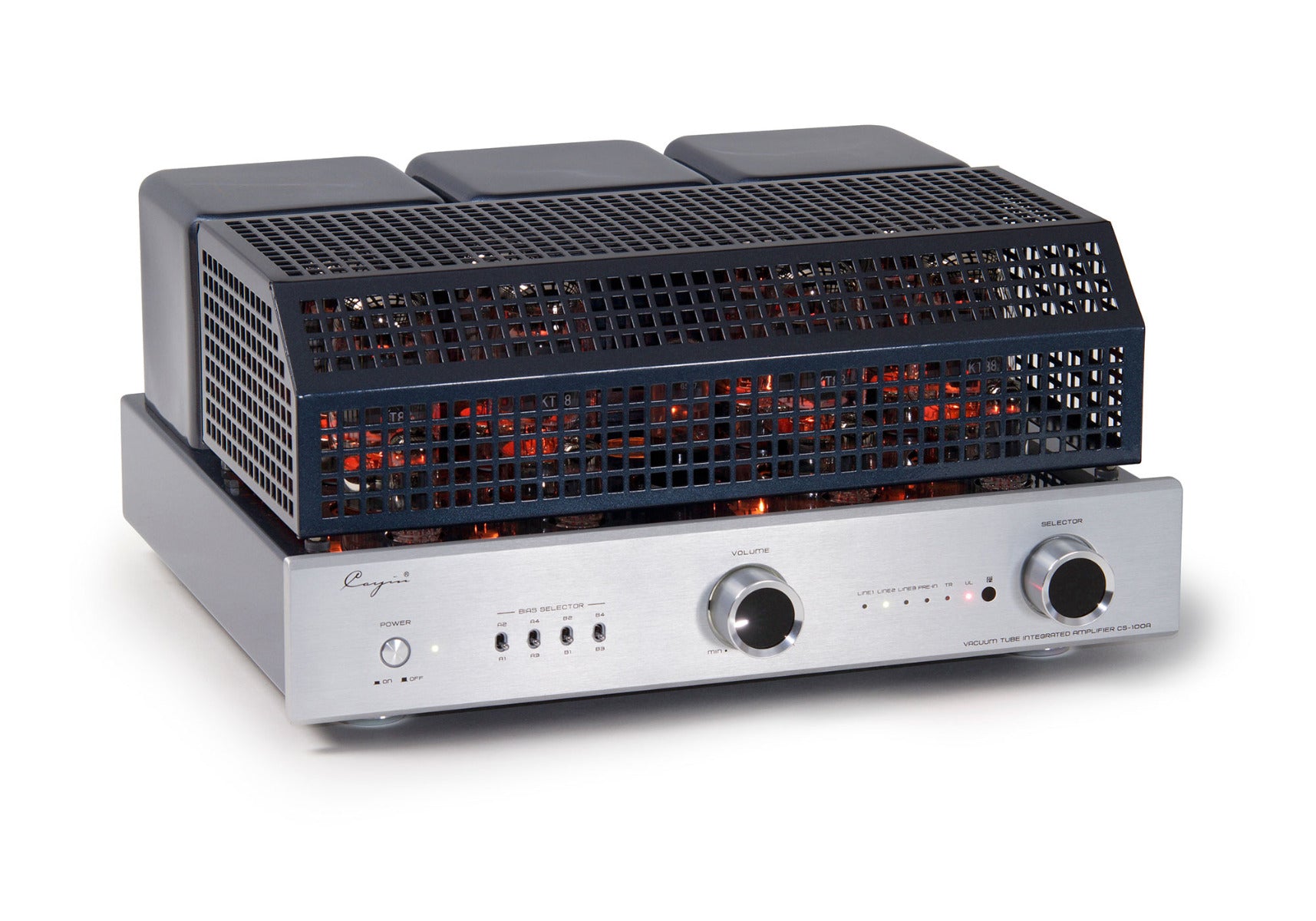

Cayin CS-100A KT88
Our powerhouse: The Cayin CS-100A with a KT-88 assembly for the output stage. This brings it to 80 watts per channel in class AB ultra-linear mode and 2 x 45 watts in triode mode - a solid output for a tube amplifier. In addition to the KT 88 power tubes, 6SN7s are used for voltage amplification, 12AU7EH for phase inversion and voltage amplification. The output tubes are controlled via a driver stage with 12BH7EH. No savings were made on the remaining components either. The remote-controllable volume control comes from Alps, the capacitors are optimized for audio applications, the film resistors have the lowest tolerances. There is also a high quality toroidal transformer in the power supply.
Technical data Cayin CS-100A KT88 |
|
|
Frequency range |
8Hz-75kHz (-3dB) |
|
Klirrfactor (THD) |
1%(1kHz) |
|
External voltage distance |
92dB |
|
Input impedance |
100kΩ |
|
Input sensitivity |
450 mV line input 1300mV pre-in |
|
Tube assembly |
6SN7 × 1, 12BH7EH × 2, 12AU7EH × 2, KT88 x 8 |
|
Entrances |
Line 1, Line 2, Line 3, Pre-In |
|
circuit |
Class A/B |
|
Housing color |
Anthrazit Metallic |
|
Front panel |
Silver or black |
|
Output power (RMS) at 4 and 8 Ω |
KT88: 45W+45W Triode,80W +80W Ultralinear |
|
Maximum power consumption |
480W |
|
Dimensions (W x D x H) |
420mm × 394mm × 200mm |
|
Weight |
30kg |
|
Furnishing |
Remote control, integrated bias measuring instrument |
|
Tube assembly |
6SN7 × 1, 12BH7EH × 2, 12AU7EH × 2, KT88 × 8 |
