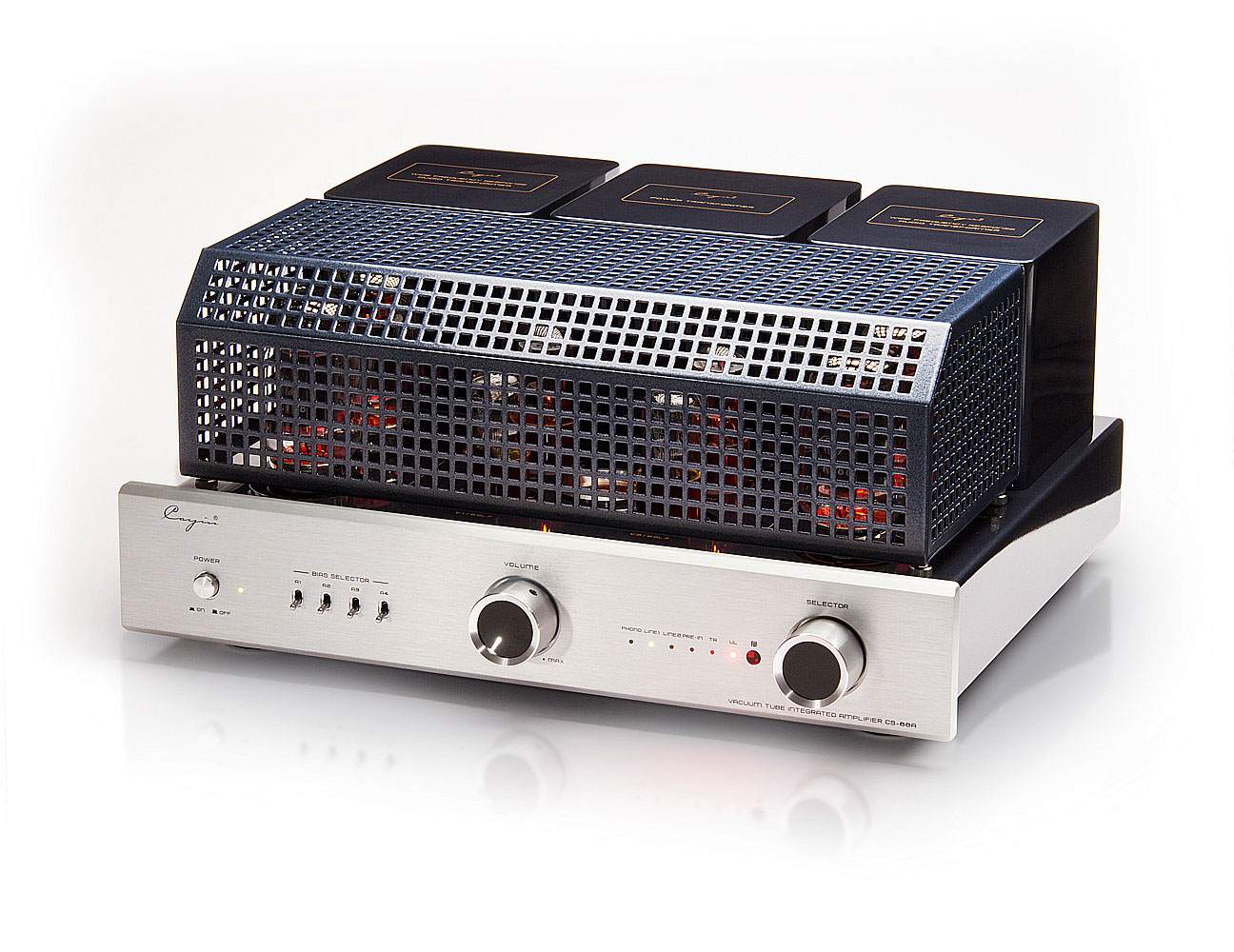

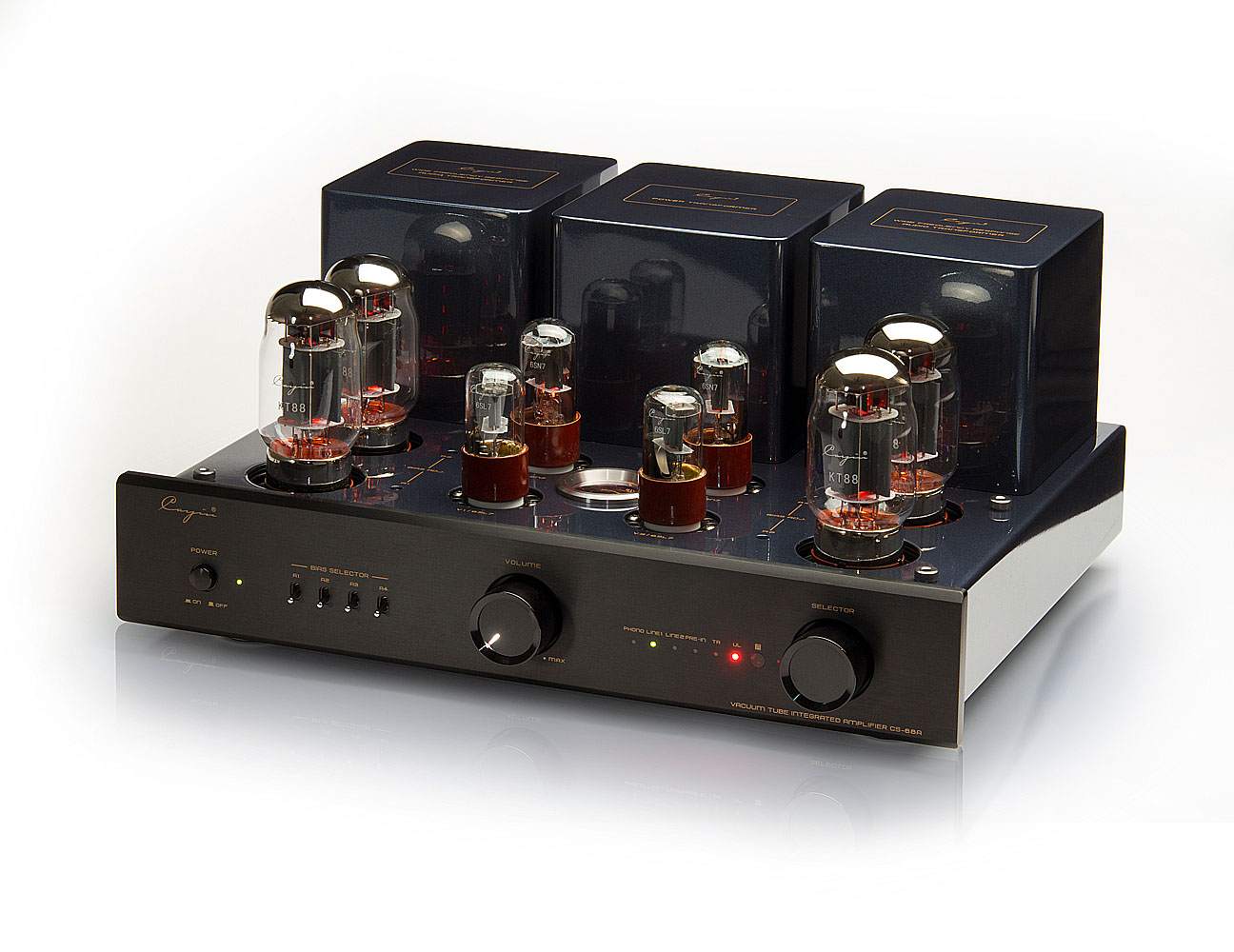

Cayin CS-88A
The brand new successor to the popular Cayin A-88TMK2 Selection now has an MM phono input. There was also a lot else going on behind the 42 cm wide aluminum front panel, which makes the tube amplifier the perfect partner for the Cayin CS-100CD, which is also new. Its larger power supply gives it more power and load stability. The new, particularly broadband output transformers also ensure even more fine detail in the sound. The tubing of the Cayin CS-88A makes connoisseurs' hearts beat faster: 2 x 6SL7, 2 x 6SN7, 4 x KT88 ensure that the neck hairs dance when listening to music. The Cayin CS-88A can be fine-tuned with its integrated bias measuring instrument so that the performance is still convincing after years.
Technical data AMPLIFIER CAYIN CS-88A |
|
Frequency range |
10Hz to 42kHz (-3dB) |
Klirrfactor (THD) |
1% (1kHz) |
External voltage distance |
93 dB |
Input impedance |
100 kΩ |
Input sensitivity (RMS) |
300mV RMS Line, 1000mV RMS Pre-In |
Phono MM |
Input sensitivity: 3mV |
Input impedance: 47kΩ |
|
RIAA deviation: Less than ± 0.25dB |
|
Tube assembly |
2 x 6SL7 2 x 6SN7, 4 x KT88 |
Entrances |
1 x Phono MM, 2 x Line, 1 x Pre-In |
circuit |
Class A/B |
Front panel |
Silver or black |
Loudspeaker impedance taps |
4 Ω, 8 Ω |
Output power (RMS) at 4 and 8 ohms |
27W+27W Triode, 48W + 48W Ultralinear |
Dimensions (W x D x H) |
420mm x 382mm x 195mm |
Weight |
28,5 kg |
Furnishing |
Metal remote control, integrated bias measuring instrument |
