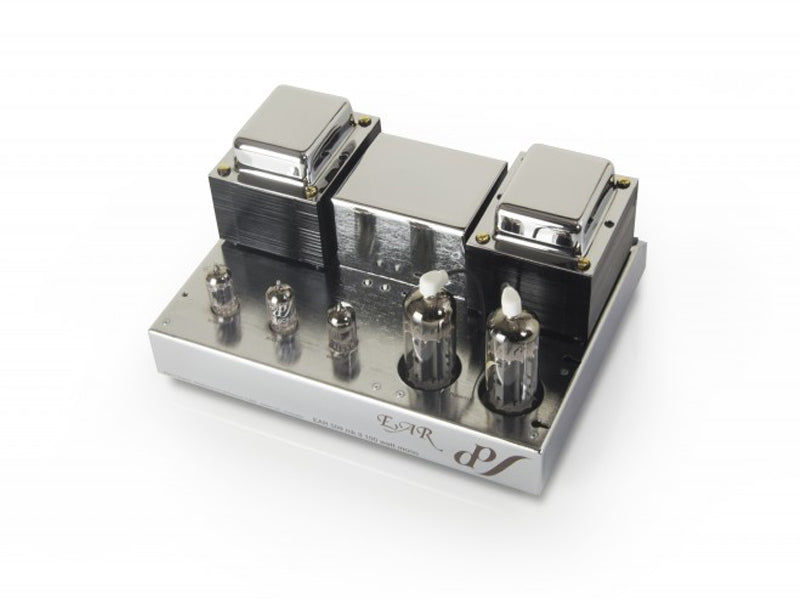

EAR 509

Sale price11 985,00 €

Classic beauty

The EAR 509 mono was born to serve professional studios. The nature of high fidelity in studios makes it perfectly suited for audio playback in the home.

The 100 Watt mono is a Tim de Paravicini design classic that has been in continual production for over 30 years. Its timeless rectilinear form is hand finished in polished chrome giving a clean and elegant look. Despite its high power, it has been refined to be densely packaged without sacrificing any performance enabling the compact design.


Limitless possibilities

The EAR 509 have been built with reliability at its heart, backed up by three decades of servicing experience for the product.

Changing valves is intuitive with the EAR 509’s self- biasing. Accurately set the operational biasing by adjusting two sets of dials. With four LEDs, it informs you that it’s set with equal intensity, allowing you to easily adjust the biasing when necessary.

Valves

Two PL509 (EL519)

Two ECC83 (12AX7)

One ECC85 (6AQ8)

Performance

Frequency response: 3Hz-30Khz +0 -1dB

Signal-to-nosie ratio: 96dB

Distortion (I.M.D.): <0.2%

Harmonic Distortion: -3dB <0.5% 12Hz-60Kz

Input Sensitvity (unbalanced): 1.2V

Input Impedance (unbalanced): 25KΩ

Output Damping Factor: 20

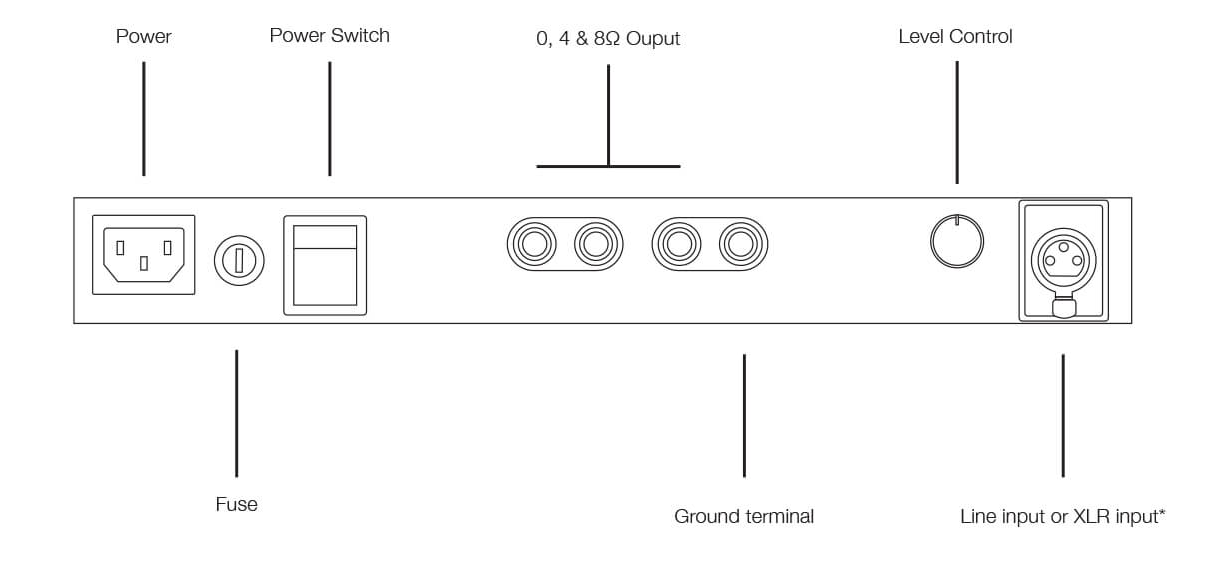

Connectivity

One Line Input (RCA) or Balanced Input (XLR)*

Output

Power output (20-20KHz): 100W into 4 & 8Ω

Dimensions & Weight

Weight: 15.3kg (34lb)

Length: 300mm (12”)

Width: 254mm (10”)

Height: 150mm (6”)

Power

Power Consumption: 180 watts

240 volt / 110 Volt / 100 Volt

(depending on model)


*Additional option
