EAR Dac 4

Sale price5 570,00 €

Exquisite detailing

The EAR Dac 4 is an amalgamation of technology and classic craftsmanship. The design is built with a precision machined chrome plated facia, equipped with a matching volume control and punctuated by discrete LED indicators. Machined chromed buttons further compliment the design and inform of its solid construction.

The Dac 4 will be a focal point of your digital media and can be accessorised with the EAR Acute 4 for all of your audio disc needs.


Limitless possibilities

Connect to multiple devices with the EAR Dac 4 boasting seven separate audio inputs. USB, AES, two SPDIFs, Toslink, EAR AcuteLink and analogue audio.

You can now realise the true potential of digital audio formats into your system. It’s not just limited to digital content with the inclusion of an analogue audio input, such is the versatility of this product.


Complete freedom of use

Nothing comes between you and the music you love. The EAR Dac 4 can handle all the popular formats up to 192 KHz
24 bit audio, enabling you play high resolution formats. This DAC will open up your digital world.

With the addition of DSD compatibility, you can play DSD files over USB natively. It makes the Dac 4 capable of so much more than you ever imagined.


Valves

Four PCC88 (6DJ8)

Audio Playback

Audio Formats supported:

SPDIF and AES 44.1K - 192 KHz, 16-24 bit

Toslink upto 88KHz 24bit

DoP V1.0 (DSD over PCM)

USB 2.0 (PC/MAC) 44.1K - 192KHz, 16-24 Bit

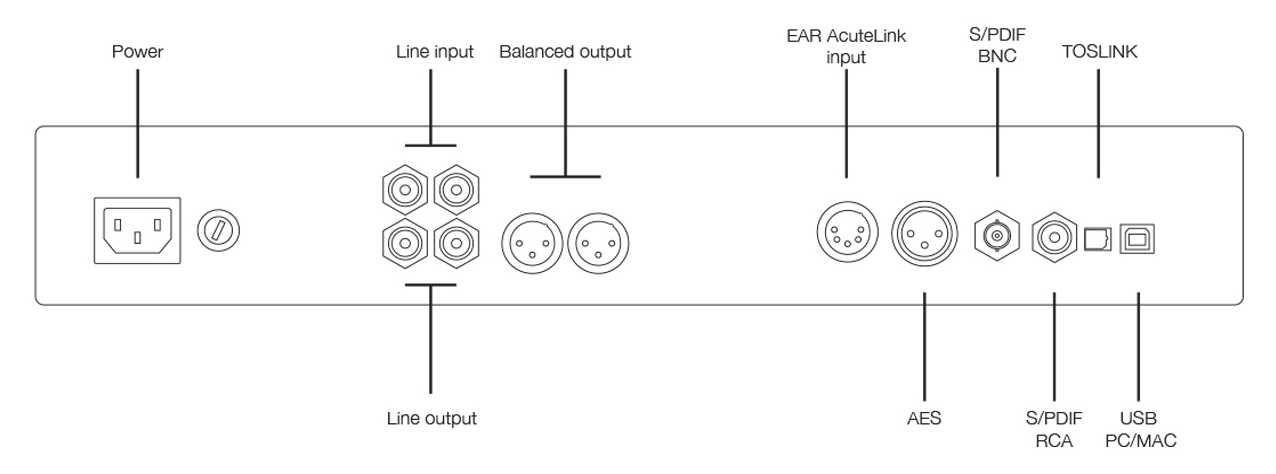

Connectivity

One Stereo Analogue Input (RCA)

One USB Input (PC and MAC)

Three SPDIF Inputs (RCA, BNC & Toslink)

One AES Input (3 pin XLR)

One AcuteLink Input (5 pin XLR)

One Line Output (RCA)

One Balanced Output (XLR)

Performance

Total Harmonic Distortion: 0.1%

@ 5 Volts 20Hz~20KHz

Signal to Noise 95db 40KHz Bandwidth

Dimensions & Weight

Weight: 8.50kg (18.7lb)

Width: 435mm (17.2”)

Depth: 285mm (11.2”)

Height: 65mm (2.7”)

Power

Power Consumption: 30 watts

240 volt / 110 Volt / 100 Volt

(depending on model)

Tekniset tiedot:

Tuloliitännät: USB, AES, 2 x S/PDIF (RCA, BNC), Toslink, EAR AcuteLink, 1 x analoginen (RCA)
Lähtöliitännät: 1 x RCA, 1 x XLR
DAC-piiri: 2 x Wolfson WM8741
Kaukosäädin: On
Häiriöetäisyys: 95 dB
Särö (T.H.D.): 0,1 %
Tehonkulutus: 30 W
Mitat (L/K/S): 435 x 65 x 285 mm
Paino: 8,5 kg
Putket: 4 x PCC88
