Franco Serblin Ktêma Lattiakaiuttimet

Frequency Response: 26Hz - 33Khz, in room
Nominal Impedance: 4 ohm (minimum 3, 2 ohm at 70 Hz)
Sensitivity: 90 dB/W/m
Minimum power amplifier: 20W per channel
Dimensions: 42,5cm × 46cm × 111cm
Wheight: 110 kg/pair (packed)
Finish: High gloss piano black, hand polished aluminium top & bottom
Semi - matte Sycamore, hand polished aluminium top & bottom

• Geometry: 4 ways 5 units. The two low frequency radiators are compression - loaded and room - interfaced at the lower part of the rear of the enclosure. Above the "fusion" frequency the mid - high cardioids radiators reproduce the significant part of the spectrum, at the top section of the front of the cabinet.

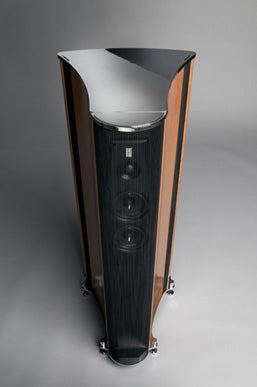

• The cabinet: is a rigid, triple arch - shaped, structure. The two lateral front cheeks are concave, while the woofer compressor is convex.
• The tweeter: is a well - established and time proven 28 mm soft - dome unit, created by Ragnar Lian, one of the greatest Danish masters of transducer design.
• The midrange: array consists of two 4" units in a step - compensated, baffle, in a cardioids acoustic - resistance configuration, for the most accurate reproduction of the musical perspective. - The woofers: are two 9" metal cone, piston performance optimized units, in a compression - controlled and room - interfaced configuration.
• The crossover: is a mutational variable slope, coherent spatial radiation design.
