Living Voice Auditorium R25A
R25A
The Auditorium was originally designed in 1991 and remained in production until 2001 when we introduced the Auditorium MKII, succeeded in turn by the Auditorium R3R in December 2011. The current iteration Auditorium R25A extends the original design concept while retaining its core strengths. It employs a different crossover topology to the other models in the range and has its own specific drive unit complement and vent tuning frequency.
Sensitivity: | 94dB |
Nominal Impedance: | 6 Ohms |
Loading: | Reflex port to rear of cabinet. |
Frequency Response: | 35Hz–22.5kHz |
Power Handling: | 100 Watts |
Cabinet Dimensions: | W 215mm × D 270mm × H 1030mm |
Plinth: | W 215mm × D 270mm × H 140mm Black textured finish. |
Gross Weight: | 19Kgs per cabinet. |
Technical Summary:
- High sensitivity, wide dispersion MTM driver topology 750-density hardwood composite enclosure.
- Proprietary hand-wound air-core inductors, mechanically isolated crossover.
- Optimised crossover layout.
- Proprietary non-inductive wire-wound resistors.
- Proprietary Living Voice metallised polypropylene capacitors.
- Treble: Scanspeak 26mm dome tweeter 8ohm. Double ferrite magnet. Fabric dome diaphragm.
- Bass / Mid: Scanspeak 17cm doped paper-coned bass/mid drivers made specifically for Living Voice.

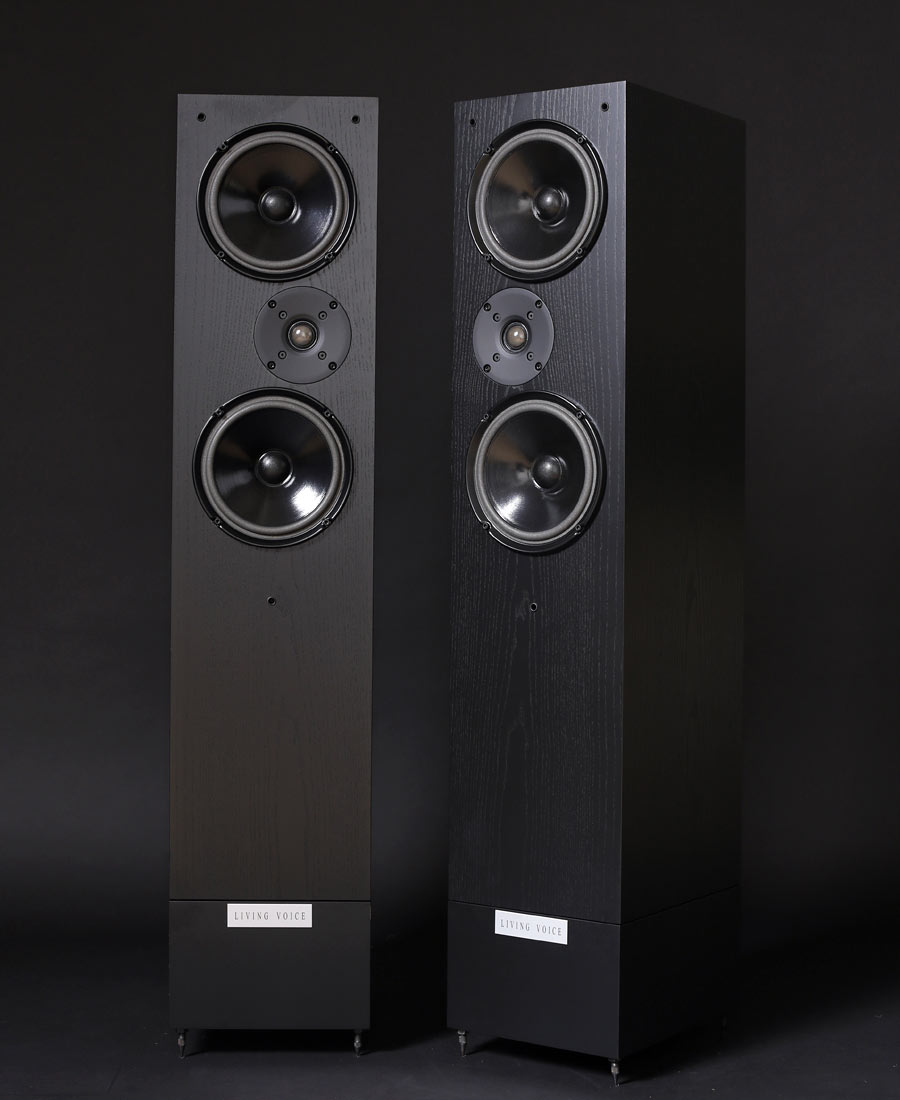

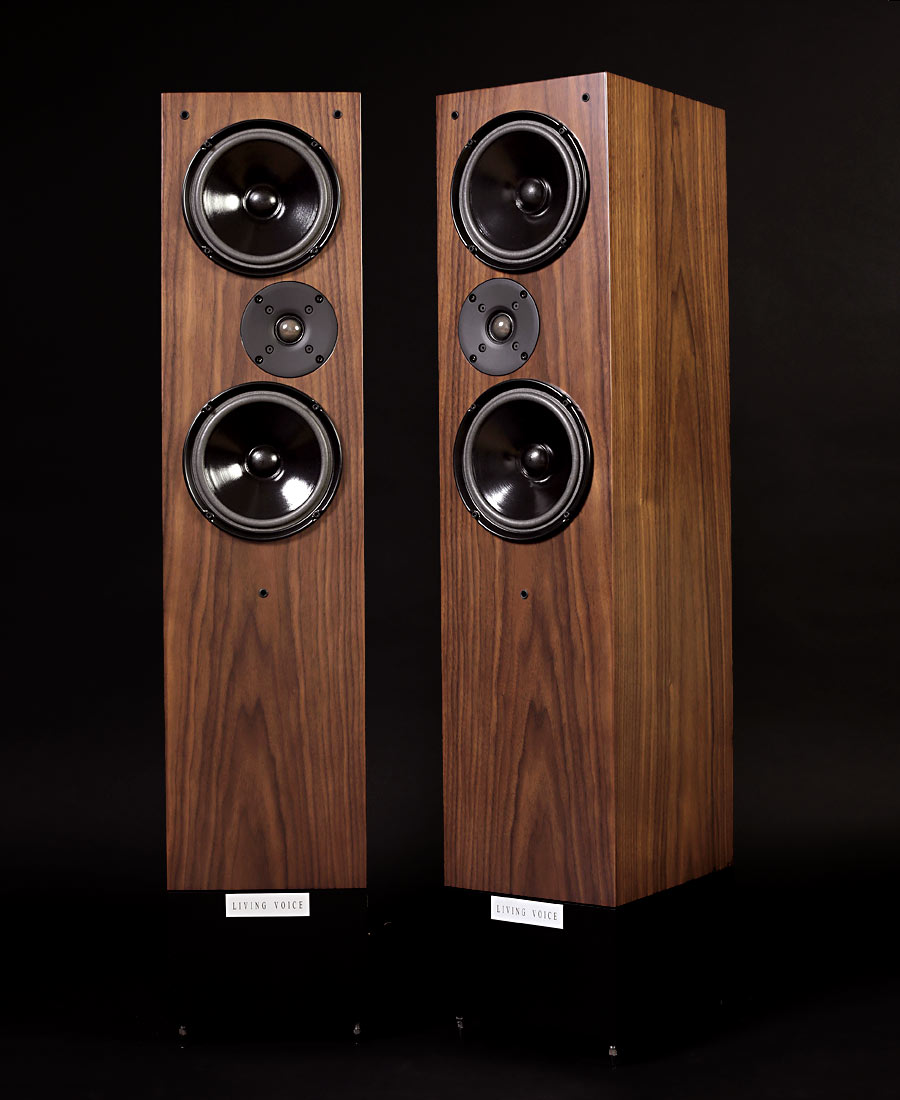

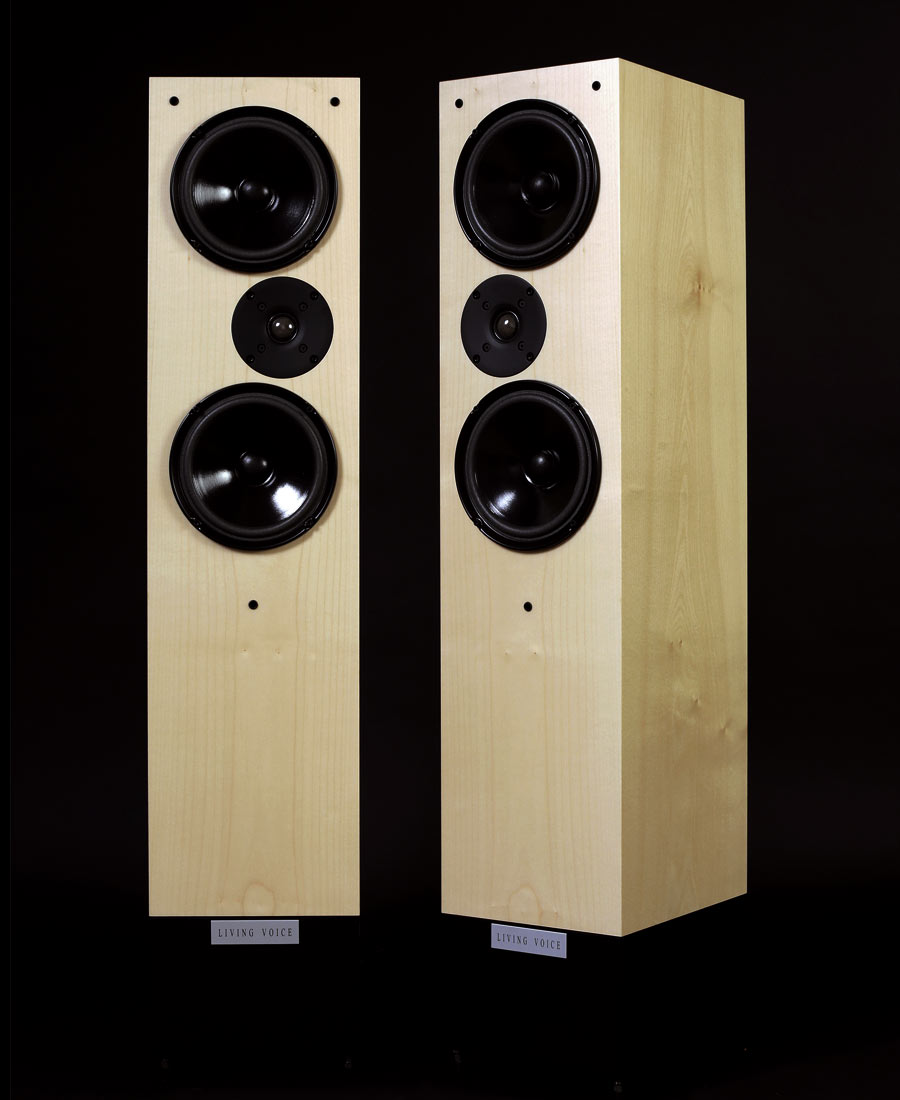

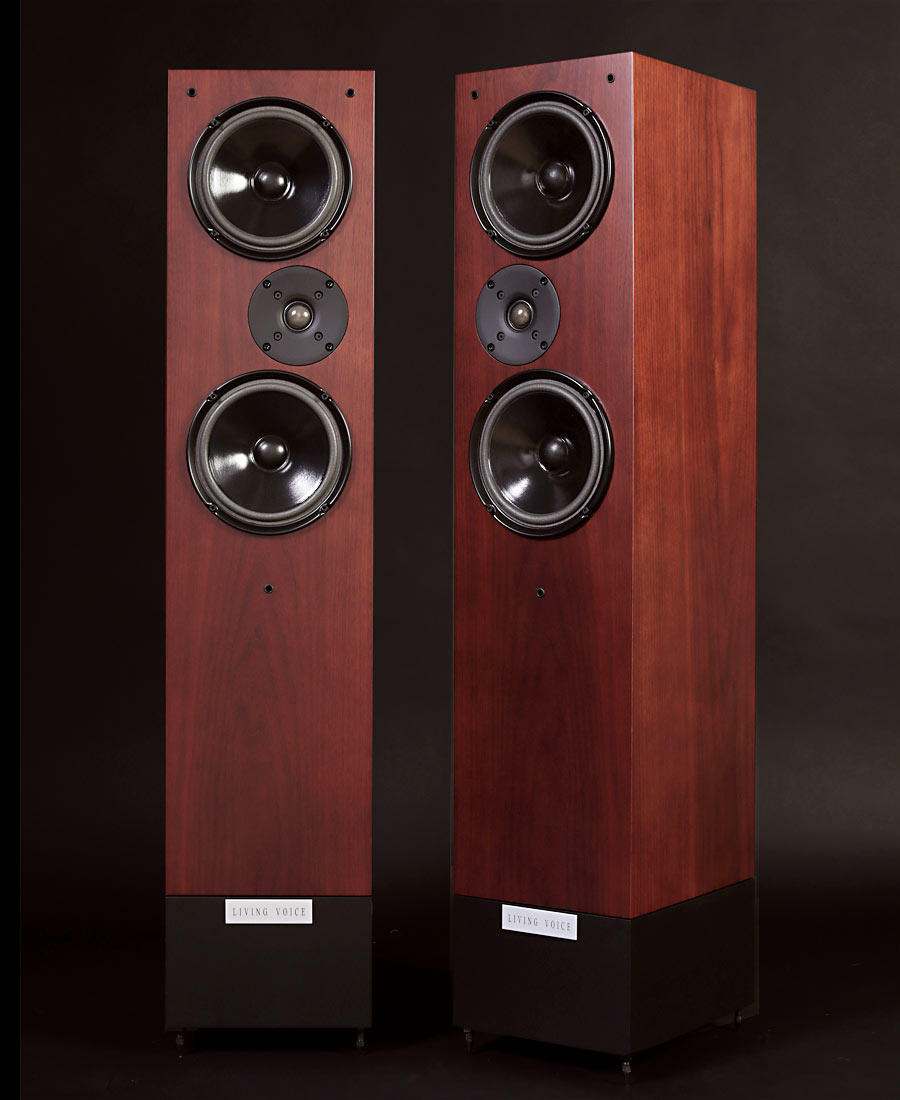

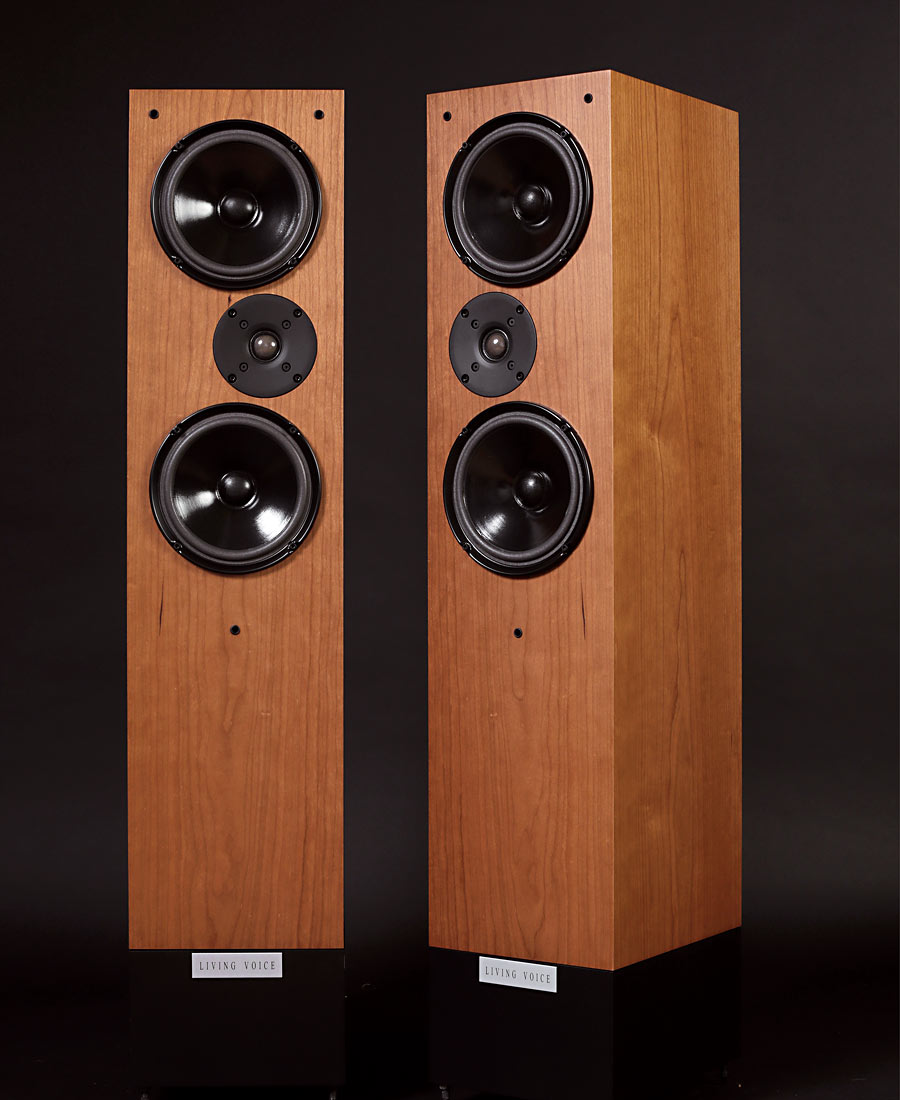

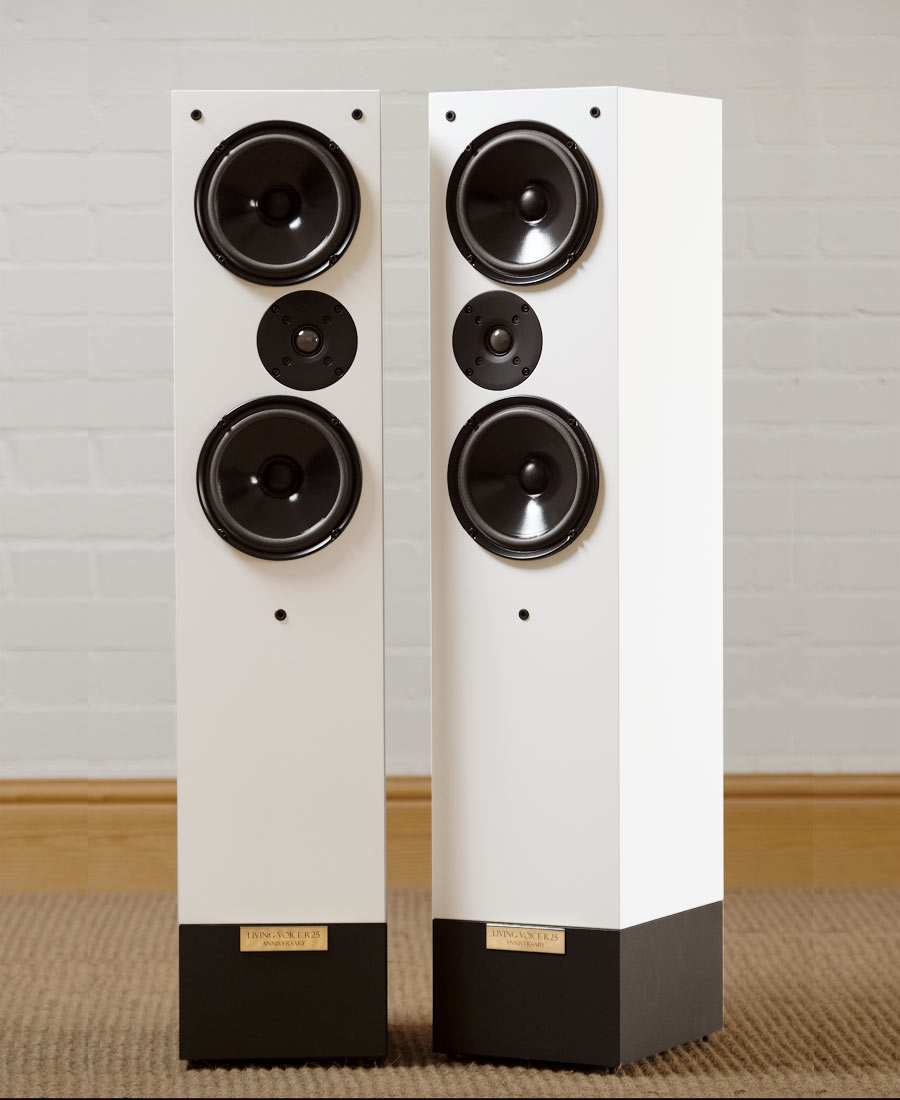

- Woods and finish: Premium furniture grade book-matched natural veneers in Cherry. Walnut. Maple. Rosenut. Black Ash, Flat White.
Living Voice Auditorium R25A
Sale price5 892,00 €
Regular price (/)
