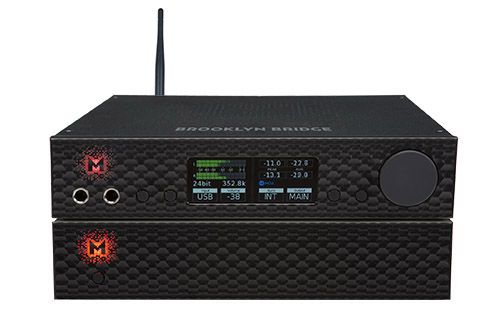

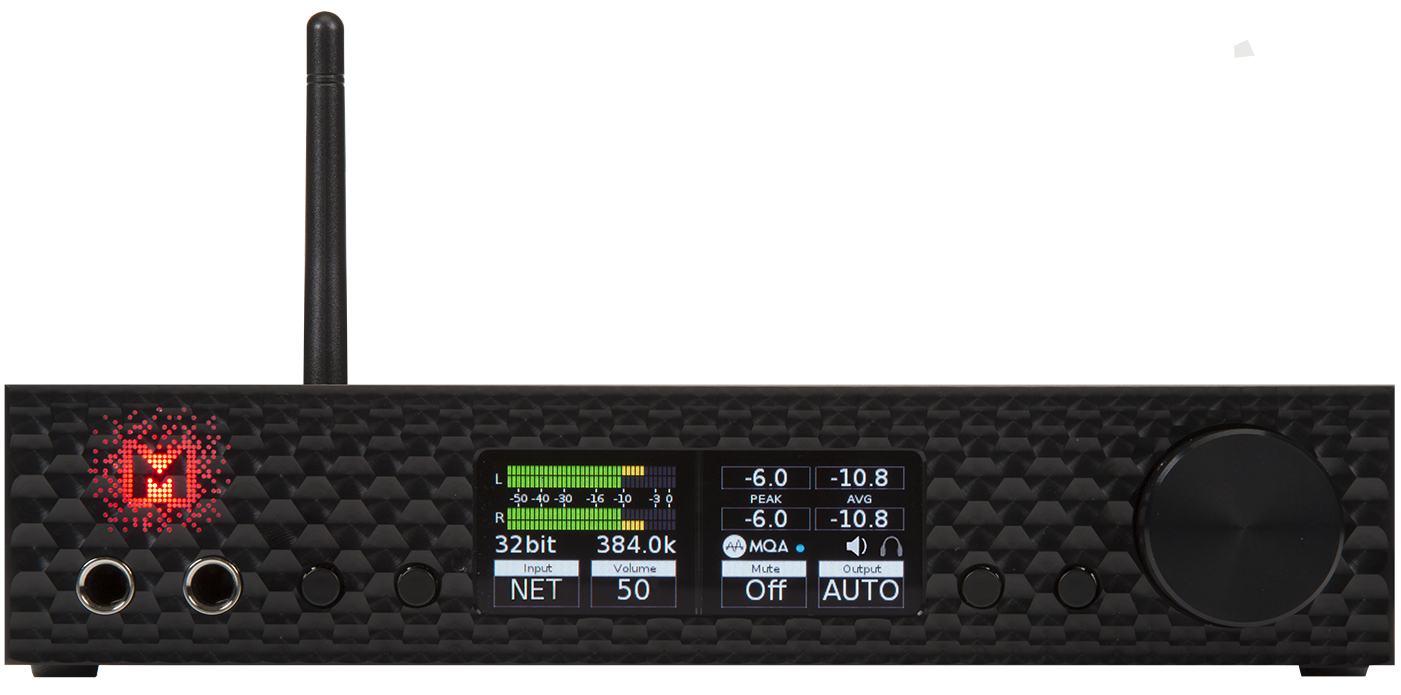

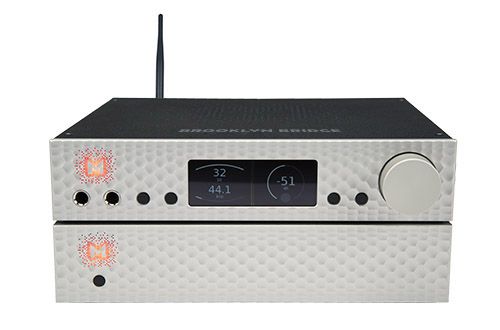

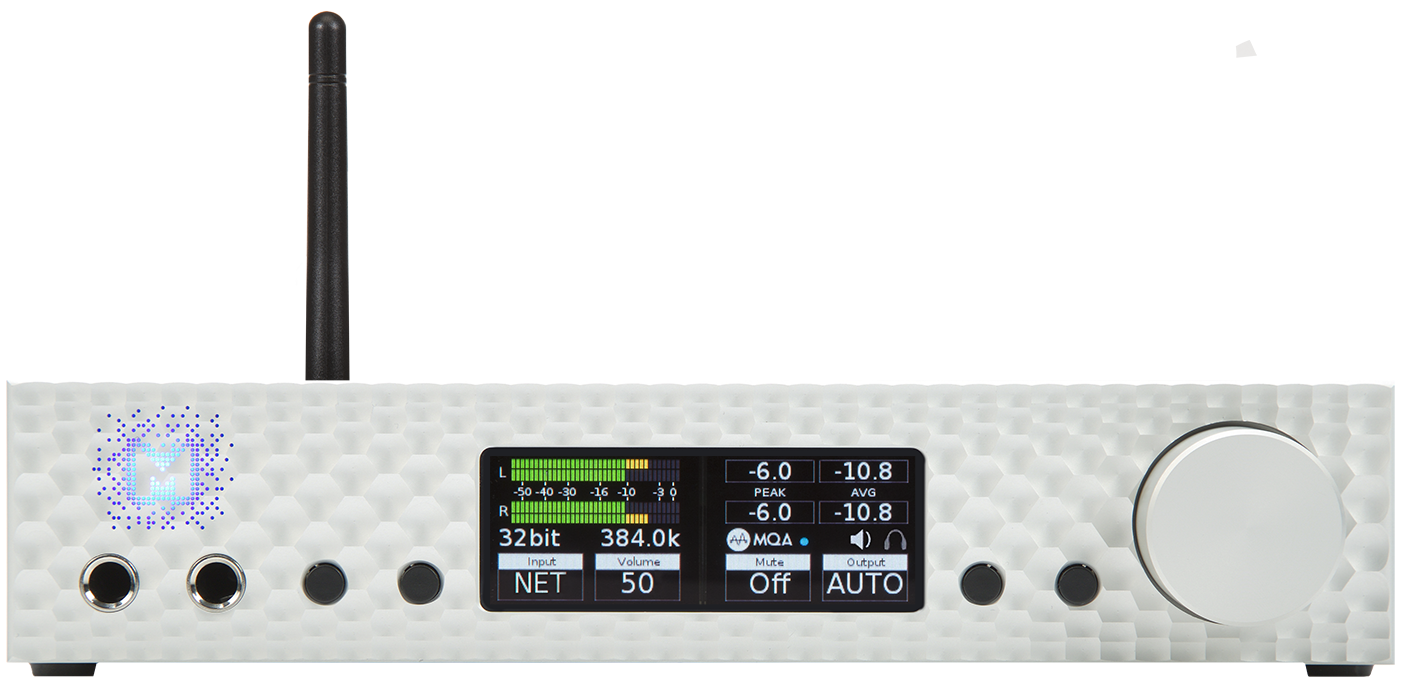

Mytek Digital Brooklyn Bridge
Mytek DAC's features
| Brooklyn Bridge |
|
|

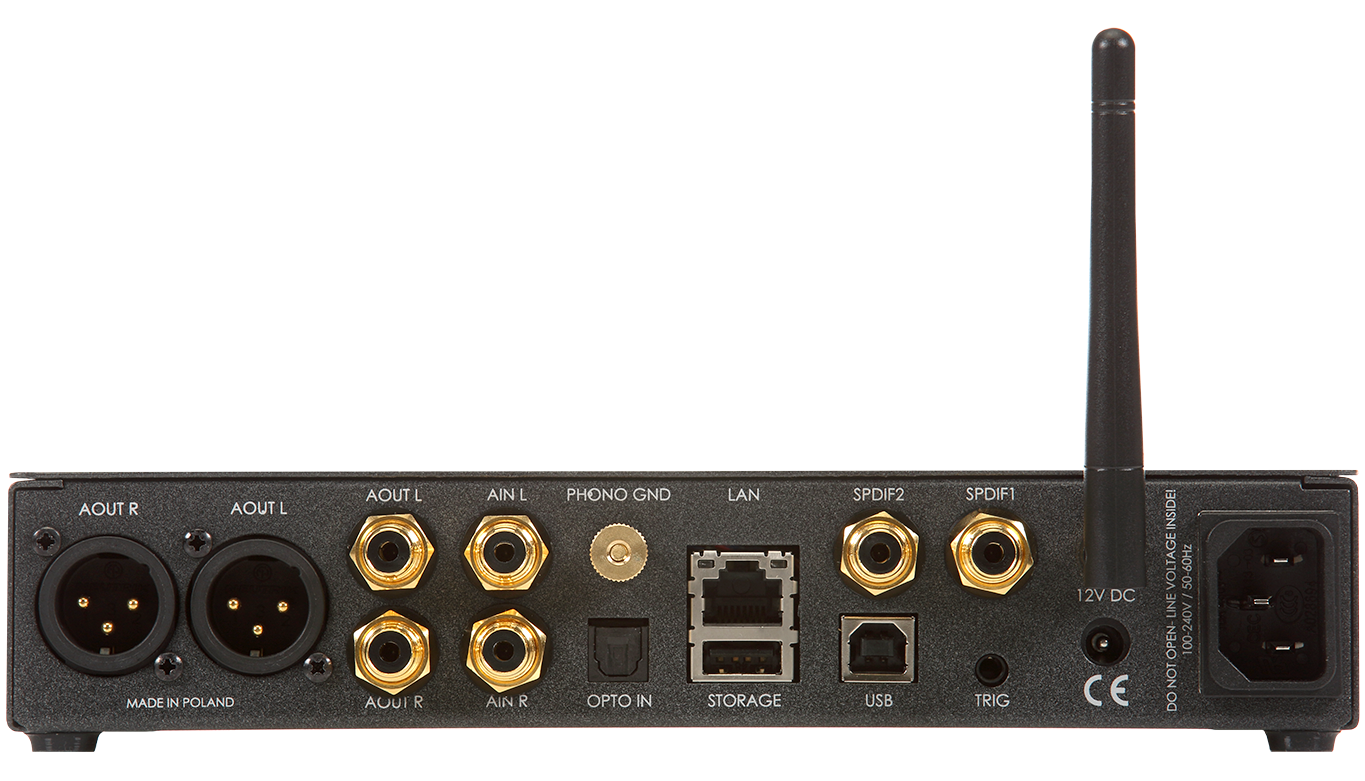

Digital Inputs
|
ETHERNET, WIFI, USB, 2xSPDIF, Toslink or ADAT, 1xDSD SDIF |
| Analog Input | 1x RCA Line or Phono MM/MC |
| Analog Output | XLR Balanced, RCA |
| Volume Control | Digital 32bit or Analog or Relay Bypass |
| Headphone Amp | dual amp w/ balanced mode |
| Network and Storage | ETHERNET CAT5, WIFI / EXT. USB DRIVE (FAT, NTFS) |
| Dac Chipset | Sabre ES9028 |
| Power Supply | Universal 30W EXT. PSU Option |
| Clock | Femtoclock <1ps |
| Streaming/Roon Compatibility | Roon Ready via USB And Network WIFI |
| Dim/Weight | 1/2 rack size, 4lbs |
SPECIFICATIONS :
CONVERSION: up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9028PRO chipset
MQA HI-RES DECODER: built in certified hardware MQA™ decoder, full unfold to original sample rate
NETWORK INPUTS: Ethernet CAT5 (PCM up to 24/192k, DSD64 , WiFi (PCM up to 24/192k, DSD64)
DIGITAL INPUTS: USB2 Class2 (OSX, Linux driverless, all formats up to 384k), 2x S/PDIF (PCM up to 24/384k, up to DSD128 DOP), Toslink (up to 24/176k, DSD64 DoP)
CLOCK: “Mytek Femtoclock Generator™” 0.82ps internal jitter.
ANALOG OUTPUTS: RCA, balanced XLR, simultaneous, 75 Ohm impedance
HEADPHONE OUTPUTS: Reference High Current,
High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to
drive headphones.
BUILT-IN ATTENUATOR: Choice of 1dB step analog attenuator, separate for main out and head-phones,
1dB step digital 32 bit attenuator and purist relay bypass.
BUILT-IN ANALOG PREAMP: Line level input or Phono M/M, M/C input, relay controlled.
AUDIO INTERFACE FUNCTION: All digital inputs can be routed into computer via USB2. Allows connection
of external digital sources such as CD Players and digitizing ADCs.
REMOTE: Included, universal remote capable
