Mytek Digital Brooklyn DAC+

Sale price2 195,00 €

Väri: Musta
Optiot: Ei lisävalintoja

Mytek DAC's features

Brooklyn DAC+
Digital Inputs

USB, 2xSPDIF, Toslink or ADAT, 1xDSD SDIF
Analog Input 1x RCA Line or Phono MM/MC
Analog Output XLR Balanced, RCA
Volume Control Digital 32bit or Analog or Relay Bypass
Headphone Amp dual amp w/ balanced mode
Network and Storage NONE
Dac Chipset Sabre ES9028
Power Supply Universal 30W
EXT. PSU Option
Clock Femtoclock <1ps Ext.Wordclock I/O
Streaming/Roon Compatibility Roon Ready via USB
Dim/Weight 1/2 rack size, 4lbs

Brooklyn DAC+

Designed in New York
The only reasonably priced high end DAC with MQA hardware decoder needed to hear full original resolution of Tidal Masters

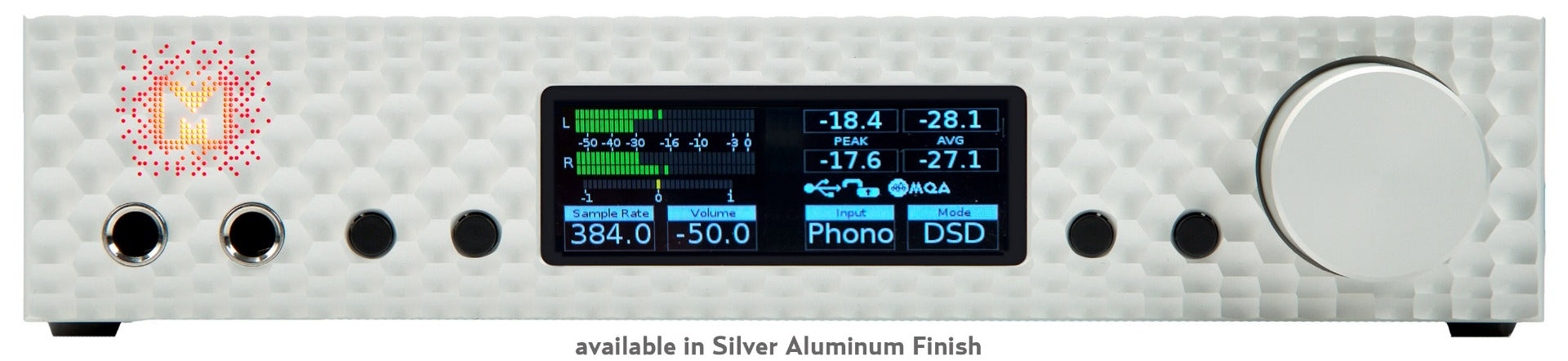

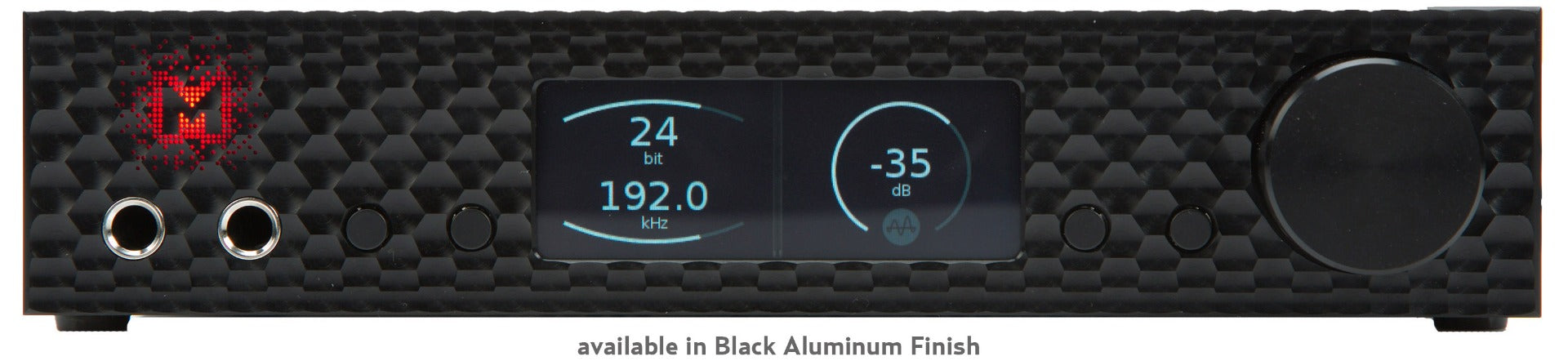

Now shipping in silver or black

Brooklyn DAC+ is primarily reference USB2 DAC, but also line and phono analog preamplifier and a reference headphone amplifier. It integrates digital and vinyl hi-res playback for reference listening on headphones and speakers. All integrated functions are of the premium grade. Both phono preamplifier as well as a headphone amplifier are of the highest quality, they challenge dedicated units costing thousands of $$.

Brooklyn DAC+ was launched at RMAF 2017 in October 2017 and is now shipping. It replaces Brooklyn DAC which has now been discontinued.

Brooklyn DAC+ features the following improvements as compared to Brooklyn DAC:

- Sabre 9028 Pro chipset ( 9018 in older model)
- Higher grade, more transparent and less noisy analog attenuator circuit.
- Improved analog input performance
- Improved Phono Stage transparency
- Improved Headphone Amp sound (more detail, more definition)
- Dual mono analog path

In other words Brooklyn DAC+ has the same features as Brooklyn DAC but improved sound. It’s not a huge improvement, but noticeable, as Brooklyn DAC is still excellent sounding and best value in the price category when compared to competition.

Brooklyn DAC+ is now in stock and shipping. Brooklyn DAC remaining stock is being sold as well and available while supplies last.

SPECIFICATIONS :

CONVERSION: up to 384k, 32bit PCM, native DSD
up to DSD256, DXD, 130dB Dynamic Range

MQA HI-RES DECODER: built in certified hardware
MQA™ decoder

DIGITAL INPUTS: USB2 Class2 (OSX, Linux driverless,
all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256

CLOCK: “Mytek Femtoclock Generator™” 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation,
includes mch DSD)

ANALOG OUTPUTS: RCA, balanced XLR, simultaneous,
50 Ohm impedance

HEADPHONE OUTPUTS: Reference High Current,
High transient Headphone Amp, 500mA, 6 Watts,
dual headphone jacks, designed to drive hard to
drive headphones.

BUILT-IN ATTENUATOR: Choice of 1dB step analog attenuator, separate for main out and head- phones,
1dB step digital 32 bit attenuator and purist relay bypass.

BUILT-IN ANALOG PREAMP: Line level input or
Phono M/M, M/C input, relay controlled.

AUDIO INTERFACE FUNCTION: All digital inputs can
be routed into computer via USB2. Allows connection
of external digital sources such as CD Players and
digitizing ADCs.

REMOTE: Included, universal remote capable

FIRMWARE: Upgradable via USB Control panel

WORLDWIDE POWER SUPPLY

OPTIONAL DC/BATTERY POWER INPUT: 12VDC

DIMENSIONS: WxDxH=8.5x8.5x1.74”=216x216x44mm

WEIGHT: 4lbs, 2kg

WARRANTY: 2 years
