Atoll Phono Stages for IN & PR

Sale price0,00 €
Optiot: Phono P50 Input (IN & PR)

Phono Stages P50 - P100

P50 : The P50 is the entry level phono stage.

ATOLL P50 bis

P100 : the P100, also integrable in all our IN (except IN30) & PR, is based on a complete symetrical scheme with discrete components. The Configuration MM or MC is possible directly on the board. Input Impedance is also adjustable for MC cartridges.

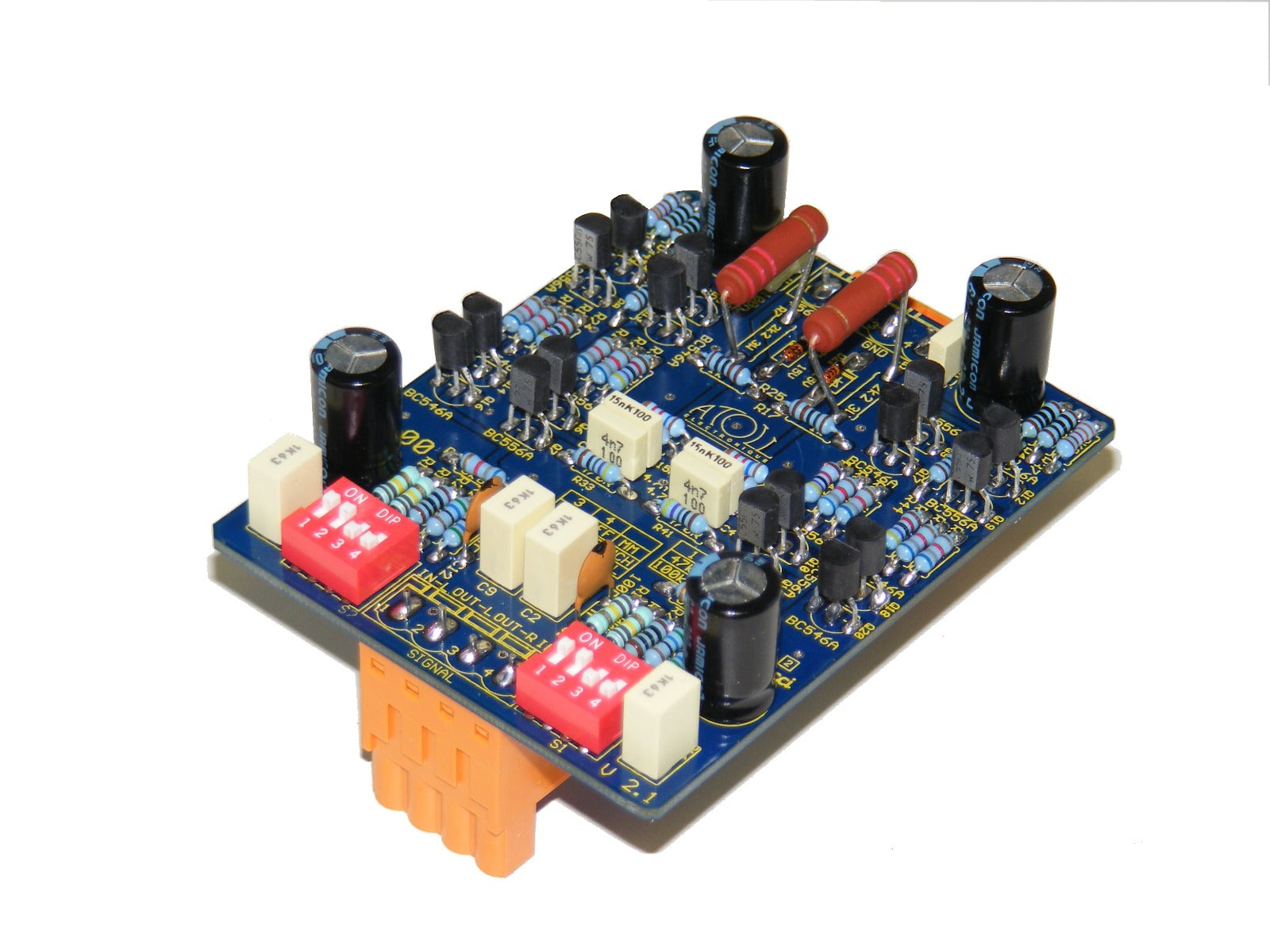

ATOLL P100 bis

Technical Specs:

REFERENCE P50 P100
Cartridge MM MM / MC
Input Impedance 47 k 47 k or 100k*
Input capacitors 100pF 100pF or rien*
MM Gain 40 dB 40 dB
MC High Gain - 46 dB
MC Low Gain - 52 dB
THD 0,05 % 0,05 %
* depending of setup (see manual)

– Installation Phono stages P50 & P100 GB

– P100, P200se and PH100 setup GB
