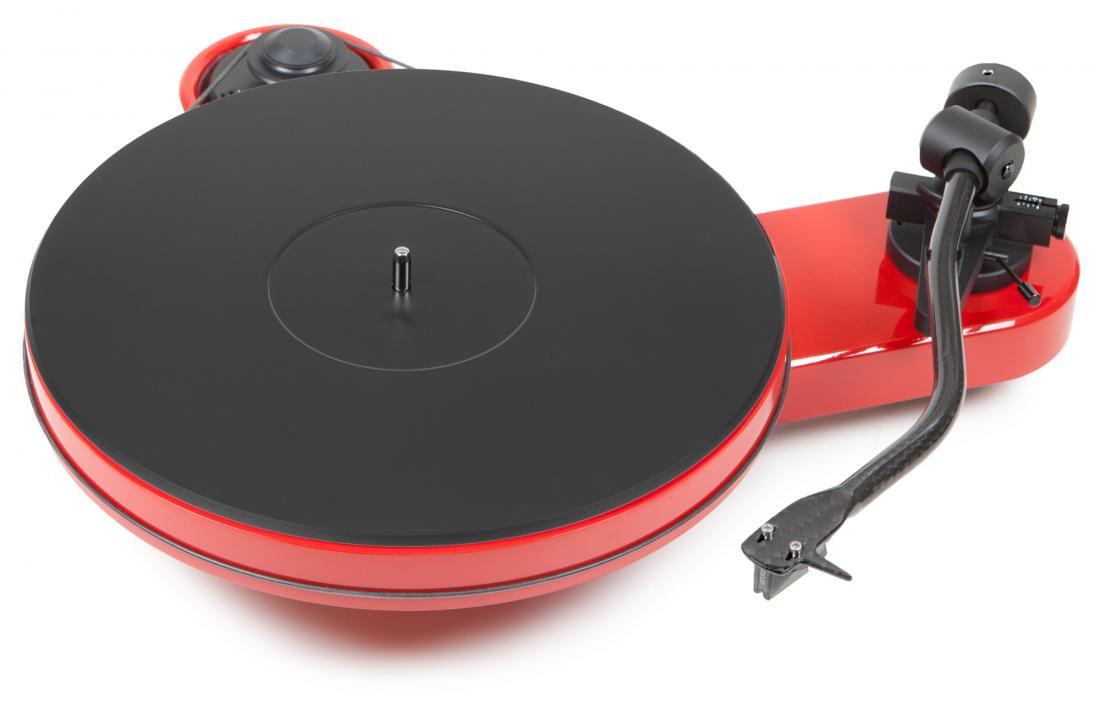

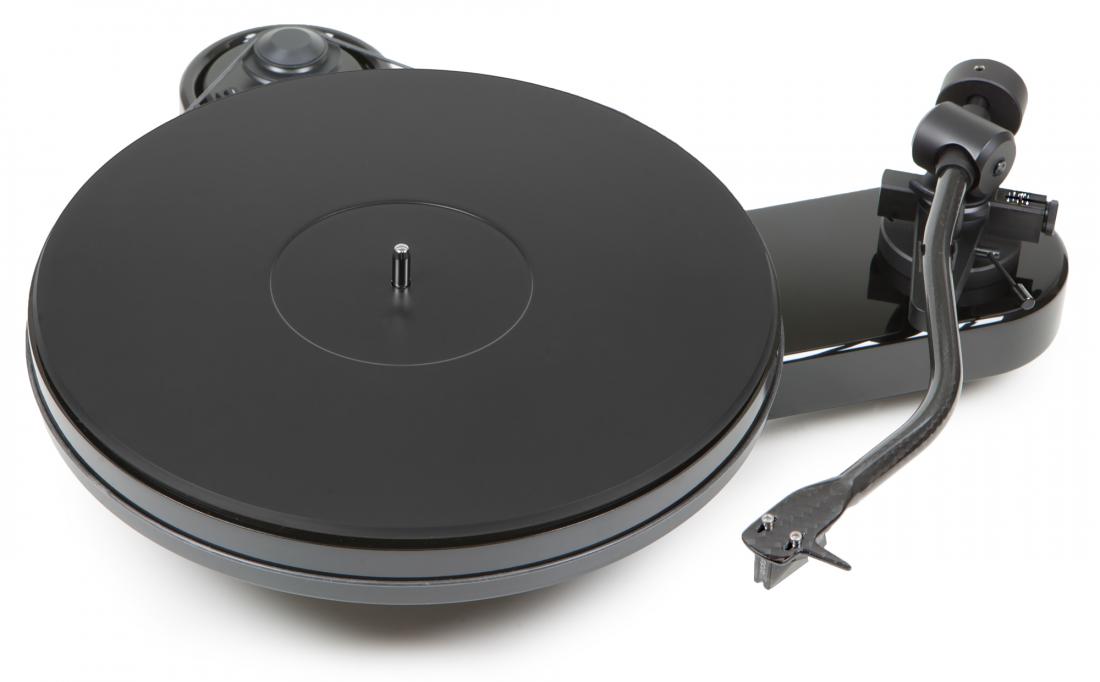

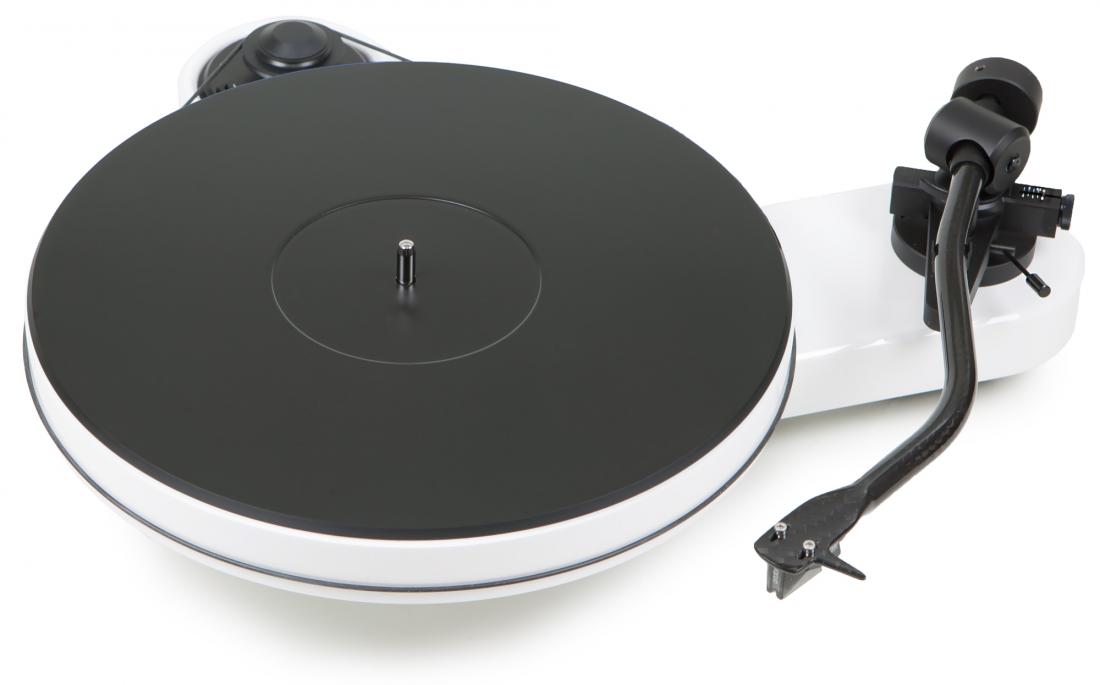

Pro-Ject RPM 3 Carbon levysoitin

The entry into the RPM world

RPM 3 Carbon utilises evolutionary enhancements to improve the performance of the RPM series: A low resonance chassis holds an inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra precision AC generator with DC power supply for further enhanced speed stability. A 10“ S-shaped tonearm tube is made from carbon fibre, aluminium and resin. Using a complex 3-step process with heat treatment and 100bar pressure, the arm tube rigidity is strenghtened, internal damping is maximized and resonances are reduced to a minimum. This makes the tonearm also suitable for MC cartridges. Additional features are a magnetic antiskating mechanism and a TPE-damped counterweight.

The RPM 3 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.

In the box:

• RPM 3 Carbon (with or without Ortofon 2M-Silver)
• Connect it E Phono Cable
• Felt mat
• Adapter for 7“ singles
• Power supply
• Allen key, stylus pressure gauge

Speed 33, 45 (manual speed change)

Drive principle Belt drive

Platter 300 mm MDF

Mains bearing Stainless steel axle with ceramic ball

Speed drift 33: +/- 0.14% I 45: +/- 0.11%

Wow & flutter 33: +/- 0.19% I 45: +/- 0.08%

Signal to noise - 71dB

Tonearm 10” carbon; aluminium and resin

Effective arm length 254 mm

Effective arm mass 16 g

Overhang 16 mm

Tracking force 0 - 25 mN

Included accessories 15 volts DC / 500 mA power supply

Power connection 110/240 Volt - 50 or 60 Hz

Power consumption 5 watt max / < 0,5 watt standby

Dimensions 422 x 118 x 373 mm (WxHxD)

Weight 5.5 kg net
