Soundsmith Carmen mkII

Sale price1 150,00 €

Carmen mk II

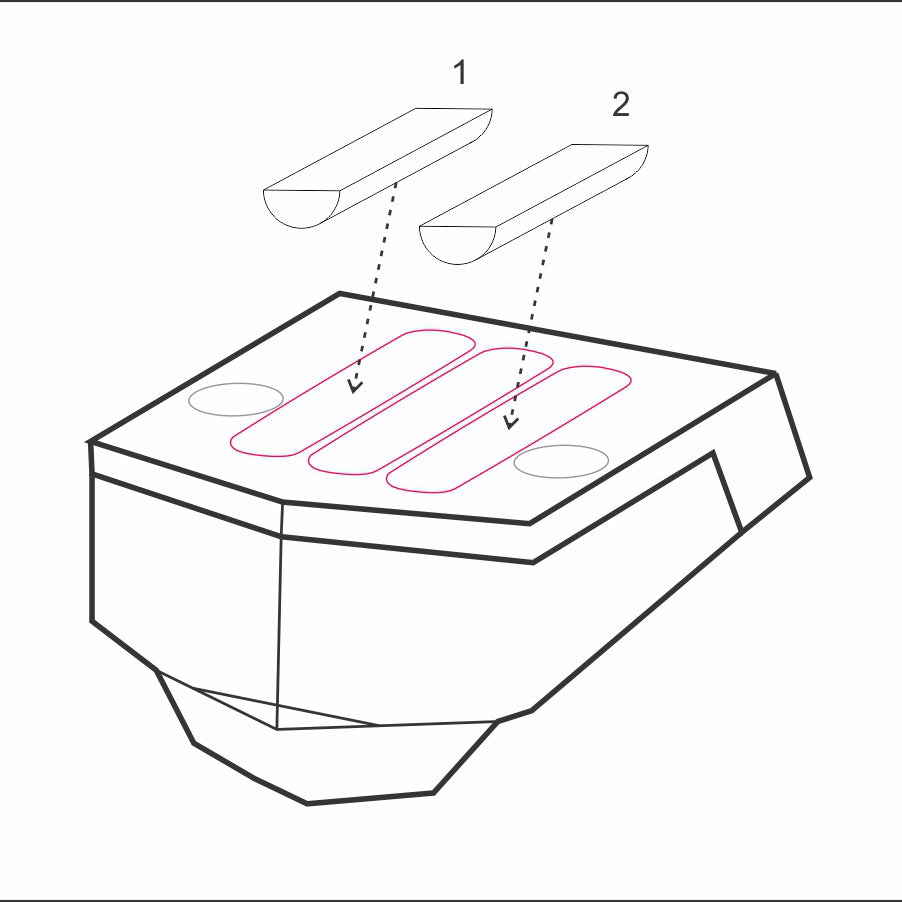

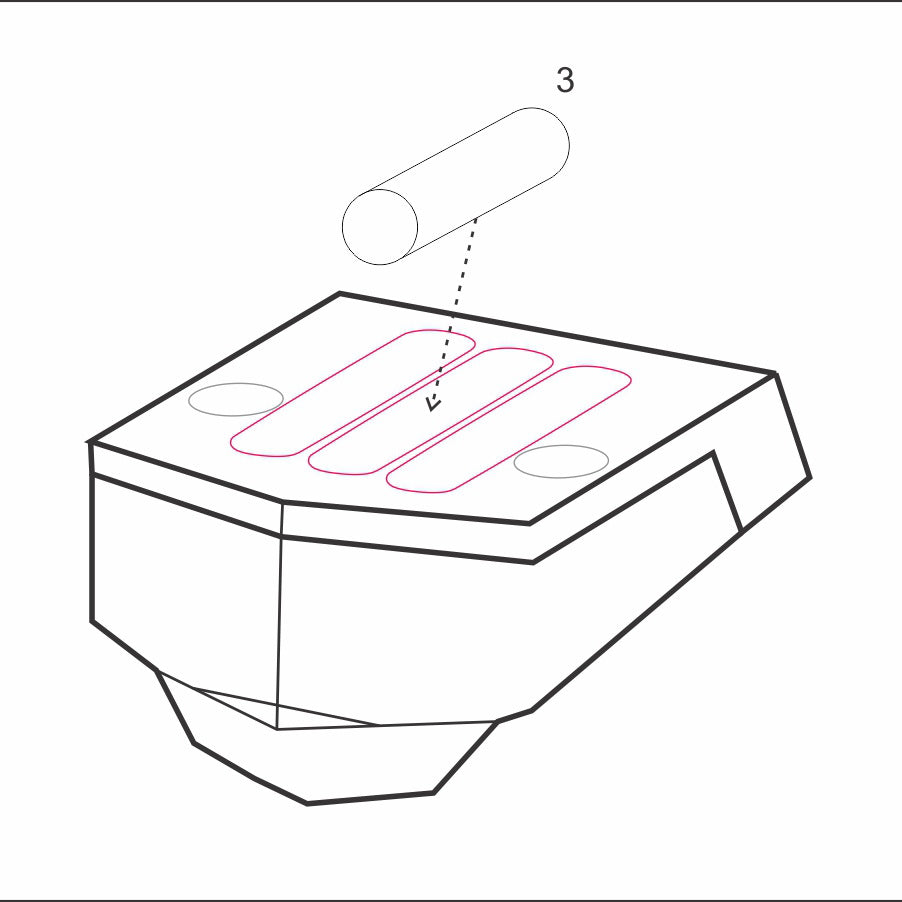

New ES Series DEMS design : Click to learn more about these cartridges!


"I get emails from audio enthusiasts and music lovers around the world asking for recommendations of a relatively affordable phonograph cartridge that is warm, dimensional, musical, and has relatively high output so you don't have to use an expensive step-up transformer with it to play music..." - (click for more Positive Feedback review)


Welcome to the next level
At this point, I've played hundreds of records with this ebony-bodied wonder, and I think I'm finally starting to grasp some of the inner beauty of Peter Ledermann's inventions. - click for more: https://www.stereophile.com/content/gramophone-dreams-4-0


Watch Video:


Just wanted to let you know how much I LOVE the SoundSmith Carmen Mk II phono cartridge. (more...)

The stylus used is a large part of what makes it special; an ultra-low mass occlusion free nude diamond cut and polished into a true hyper-elliptical shape. The combination of low tip mass and the Fixed Coil design gives the Carmen a tremendous resolution advantage over MC designs selling for more than twice the price. Housed in a handmade solid Ebony case, the Carmen delivers.

Also available in dual-coil mono.

Warranty

Workmanship on this product is warranted for 2 full years

Specifications

Cartridge Type

Fixed Coil

Stylus Type

Elliptical

Output

High

Available As Dual Coil Mono

Yes

Additional Specifications



Type: • Fixed Coil / Moving Iron
Mount: • Standard ½”
Stylus: • Elliptical Nude, 0.12 mm square
Radius of Curvature: • 6 x 17 µm
Cantilever: • Aluminum Alloy
Recommended Tracking Force: • 1.3 - 1.6 g Standard (Medium Compliance)
• 1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: • 0.35 mg
Compliance: • 22 µm/mN (Medium Compliance)
• 28 µm/mN (High Compliance)
Frequence Response: • 15 - 45,000 Hz ± 2.0 dB
Channel Separation @ 1000 Hz: • > 26 dB
• N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: • > 20 dB
• N/A (Mono version)
Channel Difference: • < 1.6 dB
• < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: • > 2.12 mV (HIGH)
DC Resistance (DCR): • 680Ω
Coil Inductance per channel: • 190 mH
Suggested Preamp Gain: • 38 - 44 dB
Cartridge Weight: • 9.20 g (ES series)
Recommended Load Resistance: • ≥ 47kΩ
Recommended Load Capacitance: • n/a
