Sounsmith Hyperion MKII

Sale price9 000,00 €

Hyperion

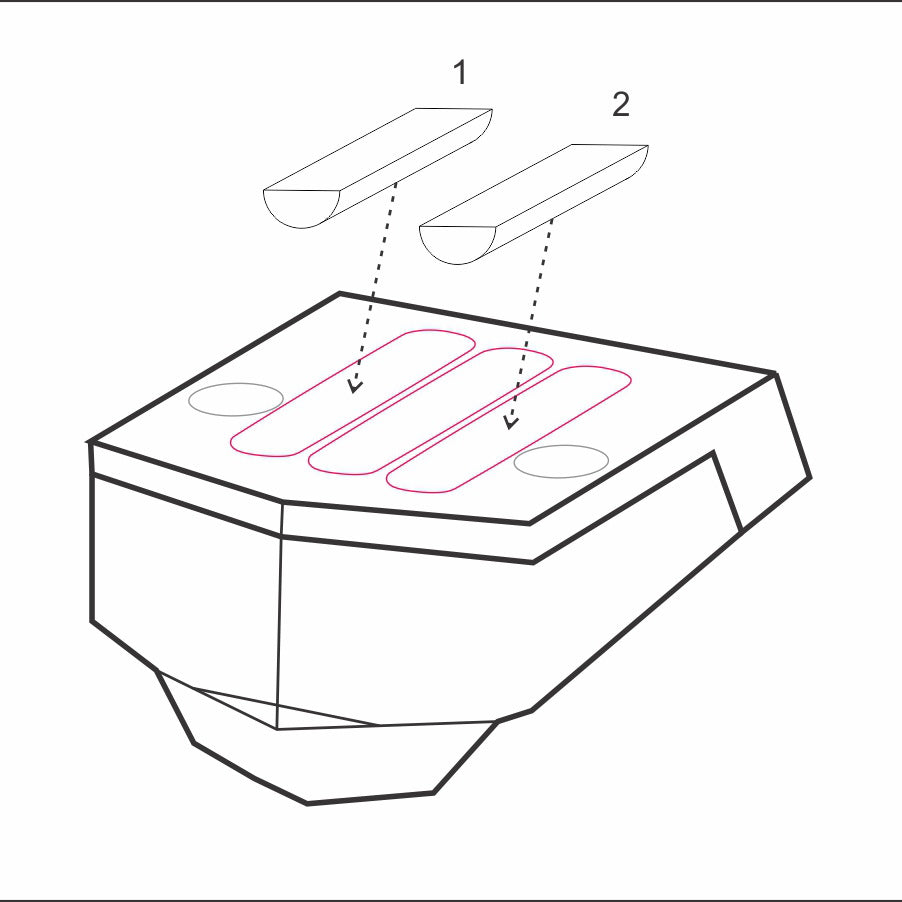

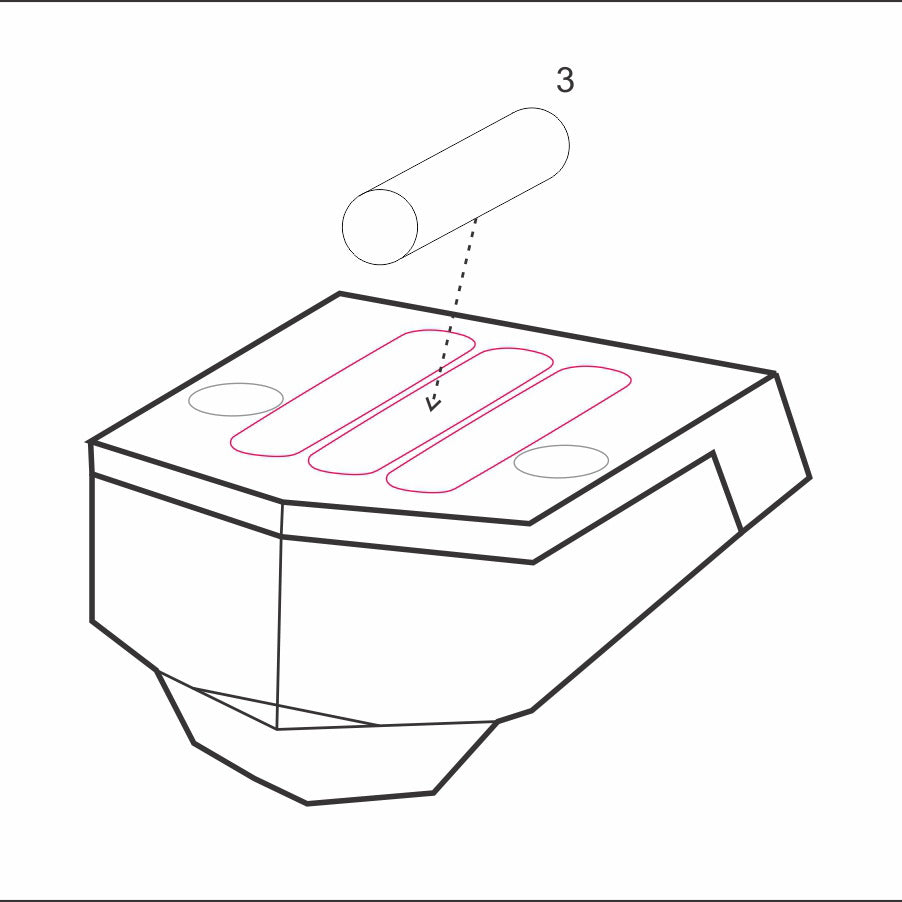

New ES Series DEMS design : Click to learn more about these cartridges!

"In my opinion, the new Hyperion is without question the finest magnetic cartridge made today. Looking forward to the next few weeks of final break in." https://www.sound-smith.com/testimonials/hyperion

A new review of the Hyperion (Norway): http://www.audiophile.no/nb-no/item/2139-soundsmith-hyperion

A new review of the Hyperion **via Google translate: http://www.audiophile.no/nb-no/item/2139-soundsmith-hyperion

Analogplanet.com: Sound-Smith Hyperion Cartridge Produced Love At First Listen click for review

Also available in dual coil mono.

Warranty

10 Years Parts and Labor

Specifications

Cartridge Type

Fixed Coil

Stylus Type

Contact Line O.C. Contact Line

Output

Low

Output Voltage

0.4 mV

Available As Dual Coil Mono

Yes

Additional Specifications




Type: • Fixed Coil / Moving Iron
Mount: • Standard ½”
Stylus: • Contact Line, Nude, 0.10 mm square
Radius of Curvature: • Contact Line or Optimized Contact Line
Cantilever: • Hand formed/treated selected Cactus "Spine"
Recommended Tracking Force: • 1.8 - 2.2 g
Effective Tip Mass: • 0.30 mg
Compliance: • 12 μm/mN vertical, 7 μm/mN horizontal
• 10 μm/mN (LT version)
Frequence Response: • 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz: • > 36 dB
• > 34 dB (LT version)
• N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: • > 25 dB
• N/A (Mono version)
Channel Difference: • < 0.5 dB
• < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: • > 0.40 mV
DC Resistance (DCR): • 10Ω
Coil Inductance per channel: • 2.75 mH
Suggested Preamp Gain: • 58 - 64 dB
Cartridge Weight: • 12.2 g (ES series)
Recommended Load Resistance: • ≥ 470Ω
Recommended Load Capacitance: • n/a
