Trafomatic Audio Reference Line One

Sale price6 499,00 €


Full balanced Class A with line output transformers
1x 6N30P and 1x ECC88 per channel
Input voltage: 230V/115 AC by request
Consumption: 60VA
Output impedance: RCA – 6 ohms, XLR – 25 ohms
Input impedance: 47Kohm
Gain : 23 dB
THD: at 1kHz – 0.2%
Outputs: 2x XLR +1x RCA
Inputs: 4xRCA , 2xXLR
Remote controlled volume control
Frequency bandwidth:
10Hz (-1dB) – 80KHz (-3dB)
S/N: 88dB
Dimensions: 450x350x100mm
Weight: 11 kg

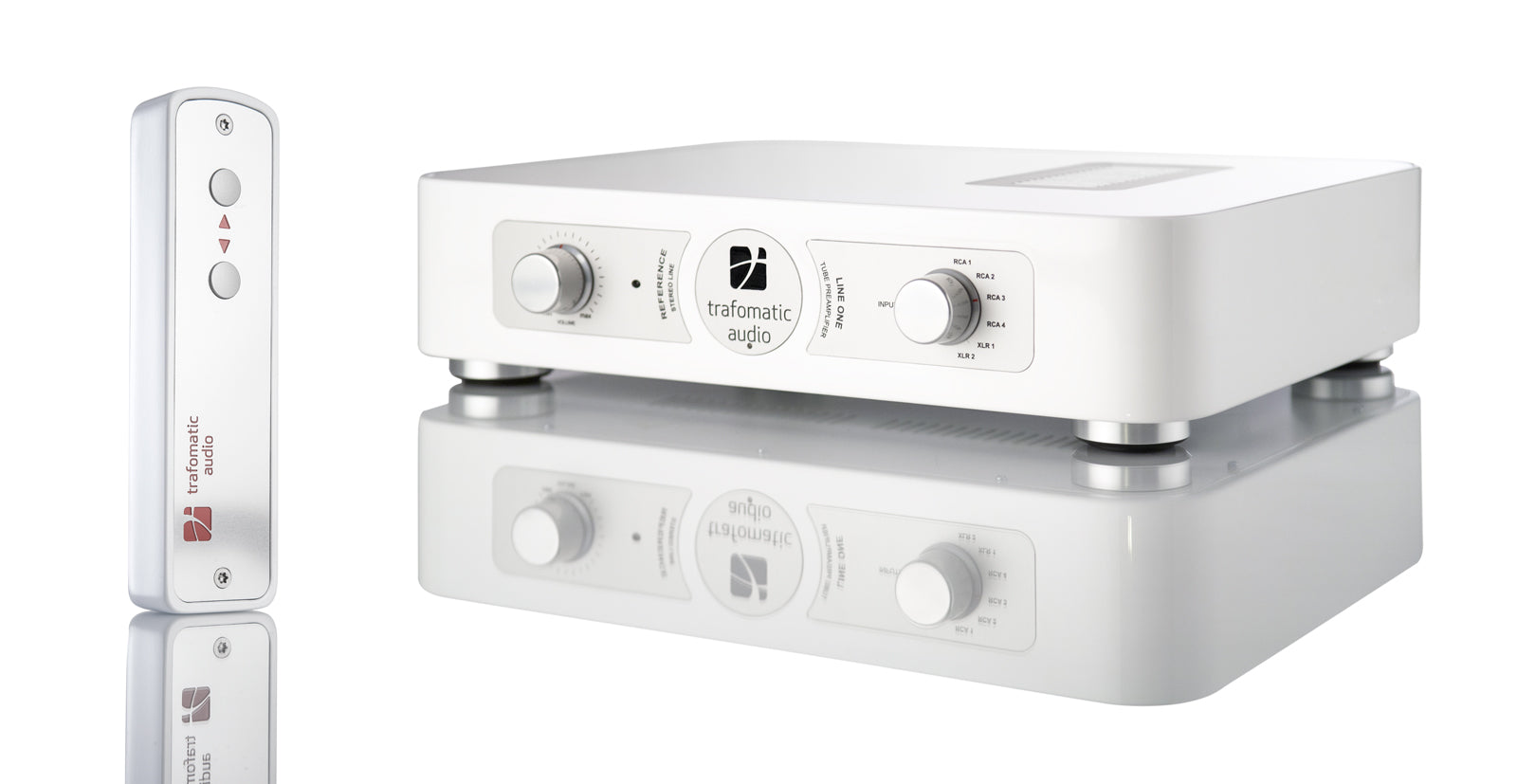

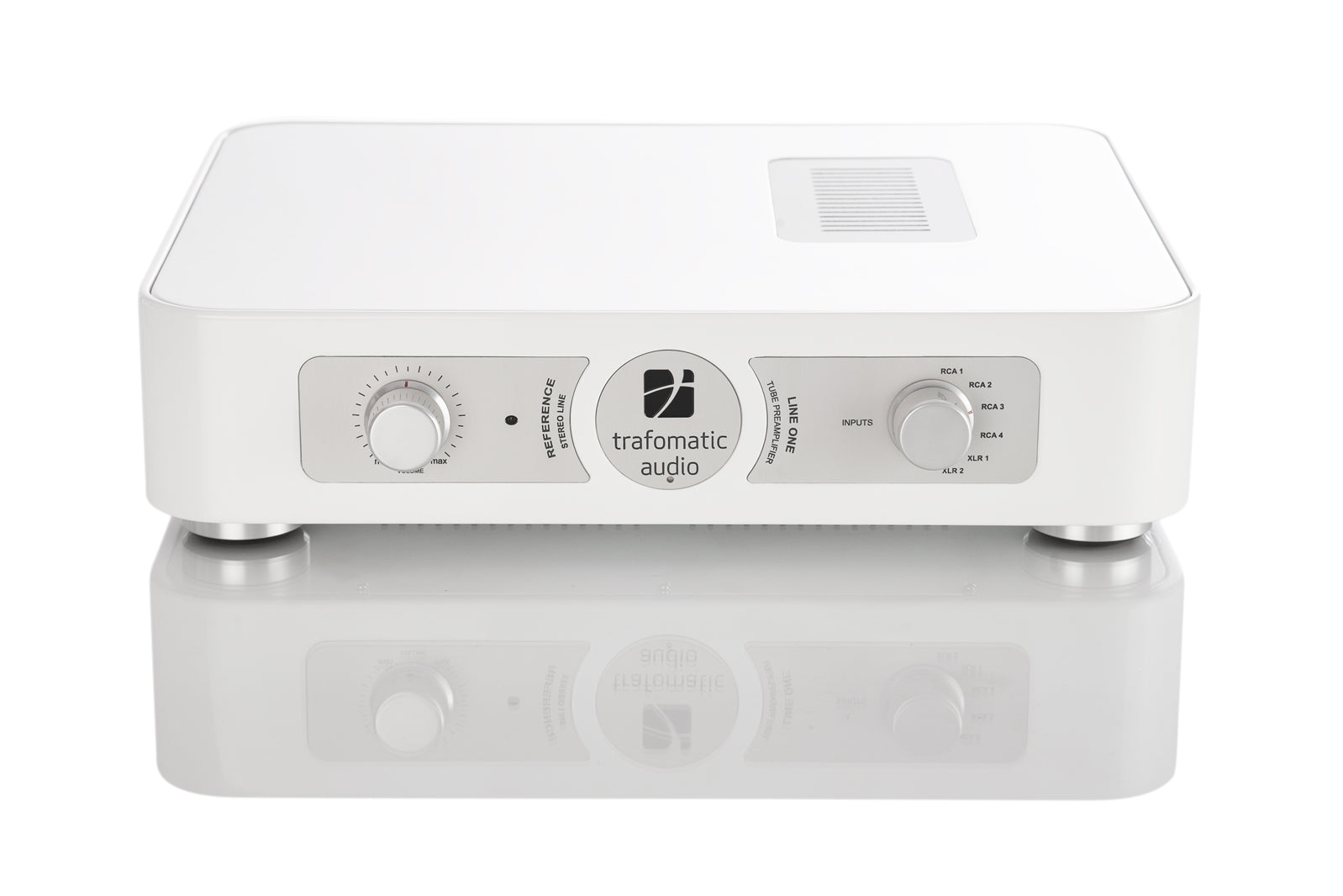

Reference Line One – Stereo tube line preamplifier

Our Reference Line One is the ideal complement to our 300B Reference or Kaivalya monaural amplifiers and naturally another power amplifiers including any SS power amplifier. It’s full balanced push pull Class A design preamplifier and use II C core output transformers at the output and possibility to drive any power amplifier, allowing you to have the most choice possible.

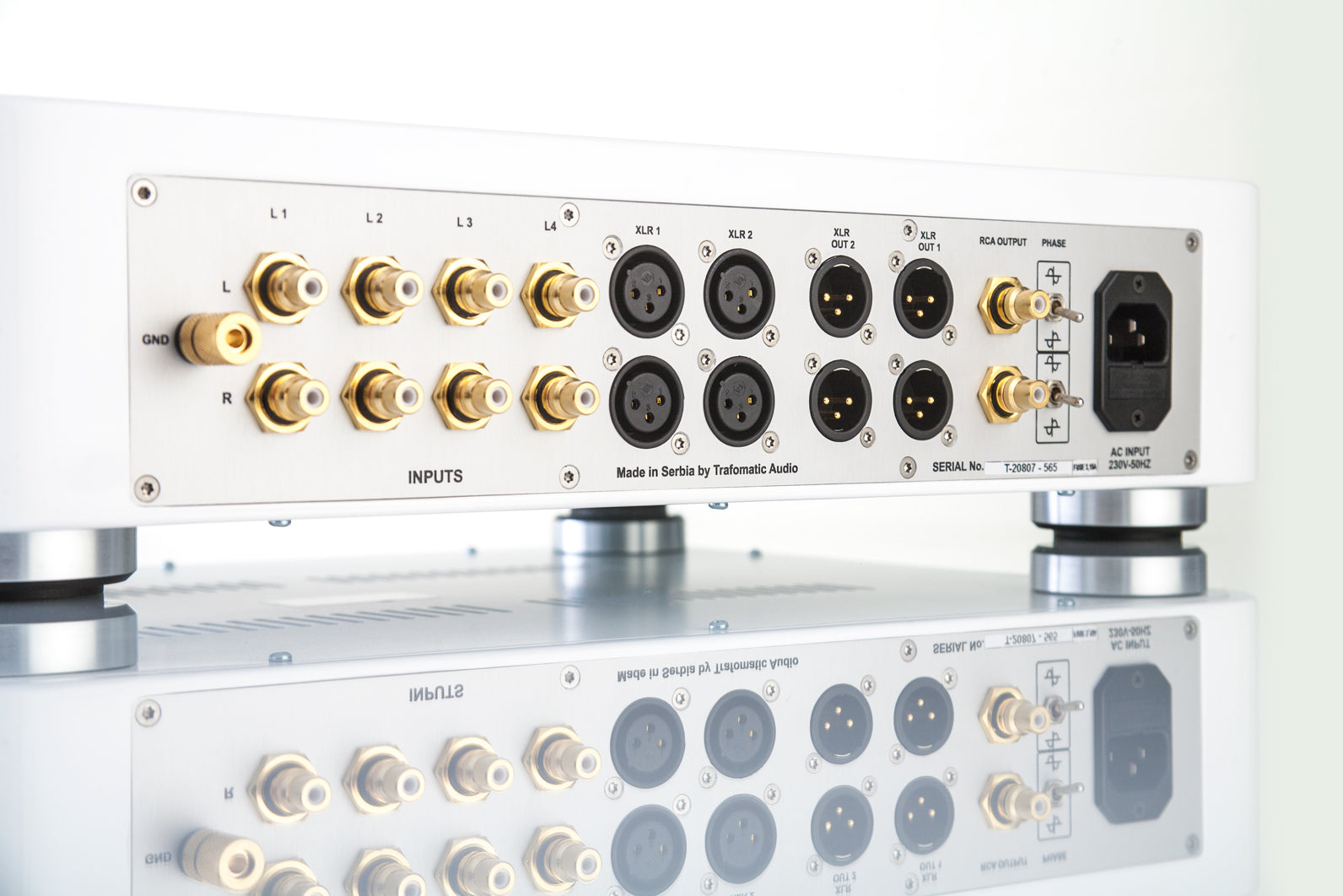

Its sports four RCA inputs, two XLR inputs and one RCA and two XLR outputs. The new Reference Line One has also swift phase outputs switchable separately for each channel on the back side. Gain is 23 dB. The tube complement consists of a pair of 6N30P and a pair of ECC88 tubes .

The power supply is solid state design especially developed for use in Reference Line One. Noise/Signal ratio is 88dB and output impedance is 6 ohms at RCA outputs and 25 ohms at XLR .

Weight is 11kg and dimensions are 450 x 350 x 100mm.

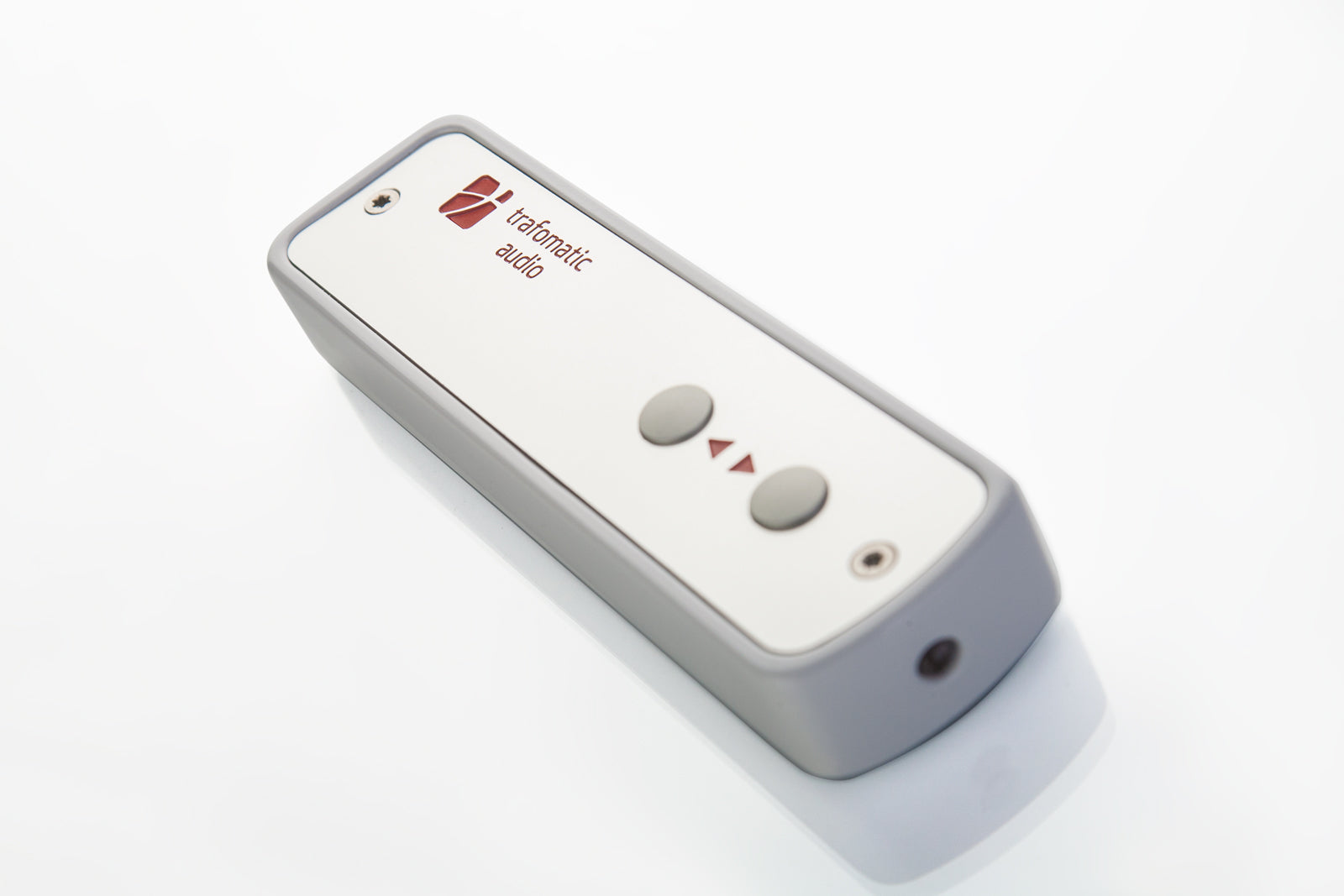

The remote wand controls volume.
