Oyaide MTS SSE pistokejakaja

Power corrupts, How true that is, especially when it comes to getting the best sound from your HiFi

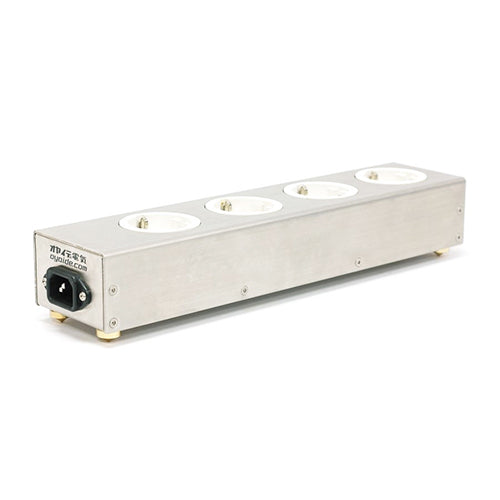

So why not give your hifi system to power it desrves with the new Oyaide MTS-4e especially designed at last for the European market, it's here, give it a try.

The MTS-4e power distributor is so simply designed and assembled and it has so few parts that Oyaide closely examined the qualities of each component in great detail, even carefully determining the appropriate processing temperature of the internal wiring. By applying years of technical experience and know-how about power supply, Oyaide were able to create a product of exquisite quality.

Some features of the MTS-4e.

Chassis

The chassis of MTS-4e is made of 2.0mm thick brass board which is highly rigid and has excellent vibration damping property. For Its surface treatment, a combination of nickel and chrome plating is applied to control the hardness of the body. Coupled with the shielding effect of brass, nickel plating reduces exogenous noise in wide frequency range.

4N Pure silver wire for internal wiring

Oyaide chose to use 2.0mm 4N silver wire for its internal wiring connection. Usually, an annealing process is applied for unstiffening the metals. However, Skin-Pass process is applied for 4N silver wire of MTS-4e. Skin-Pass process is the rolling process operated to improve the quality of surface treatment.

Under the strict quality-control, heating temperature and time, drawing velocity and Mohs hardness are all specified in the process. Moreover, the separation wiring is applied to even the sound fluctuation of each receptacle by series wiring.

Pb free soldering by SS-47 audio grade solder

For the soldering connection of MTS-4e, Oyaide employed SS-47 audio grade solder. Compared to general solders which usually contain 3N (99.9%) pure tin, SS-47 contains 4N (99.993%) pure tin achieved by excluding impurities to the maximum. Furthermore, 4.7% silver and 1.7% copper are contained for the purpose of improvement of electric conductivity and durability.

Mounting pole

The mounting poles are made of brass and set up not only for mounting receptacles but also for minimizing the resonance between receptacles and chassis. Moreover, for the perfect insulation, Oyaide put urea resin washers on both sides of mounting flame of receptacles. These enhance power and energy of sound sources.

Electromagnetic wave absorber

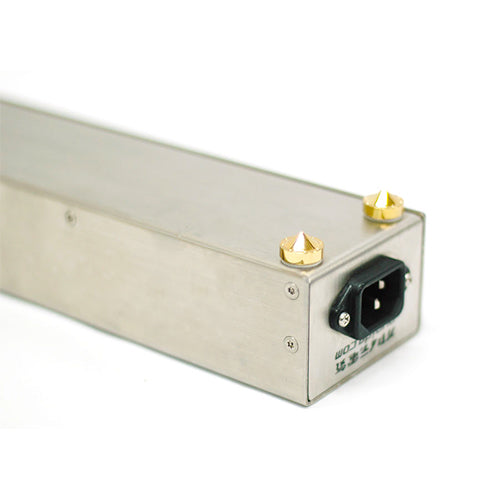

We installed an electromagnetic wave absorber at IEC inlet part. It reduces magnetic noise and distortion generated around the contact.
